NZXT C750 Gold 750W Power, Core Full Modular Power Supply, 80 PLUS Gold Efficiency, 2,300 RPM Fan Speed, 103.36 CFM Airflow, 135mm Fan, Fluid Dynamic Bearing, ATX 3.1 - مزود طاقه
ATX 3.1 Certified, PCIE 5.1 Ready: Supports next-gen GPUs with a dual-color 12V-2x6 connector for safe, stable, and efficient power delivery—ideal for modern NVIDIA graphics cards.
80 PLUS Gold & Cybernetics Platinum Efficiency: Delivers energy-efficient, stable performance to reduce heat and power draw, even under demanding loads.
Whisper-Quiet Operation: Cybenetics noise certified for near-silent performance: A++ for C750 and C850 (<15 dBA), A+ for C1000 (15–20 dBA).
Ready for AMD & NVIDIA GPUs: Compatible with most GPUs using a 12V-2x6 cable or up to three 8-pin PCIe cables.

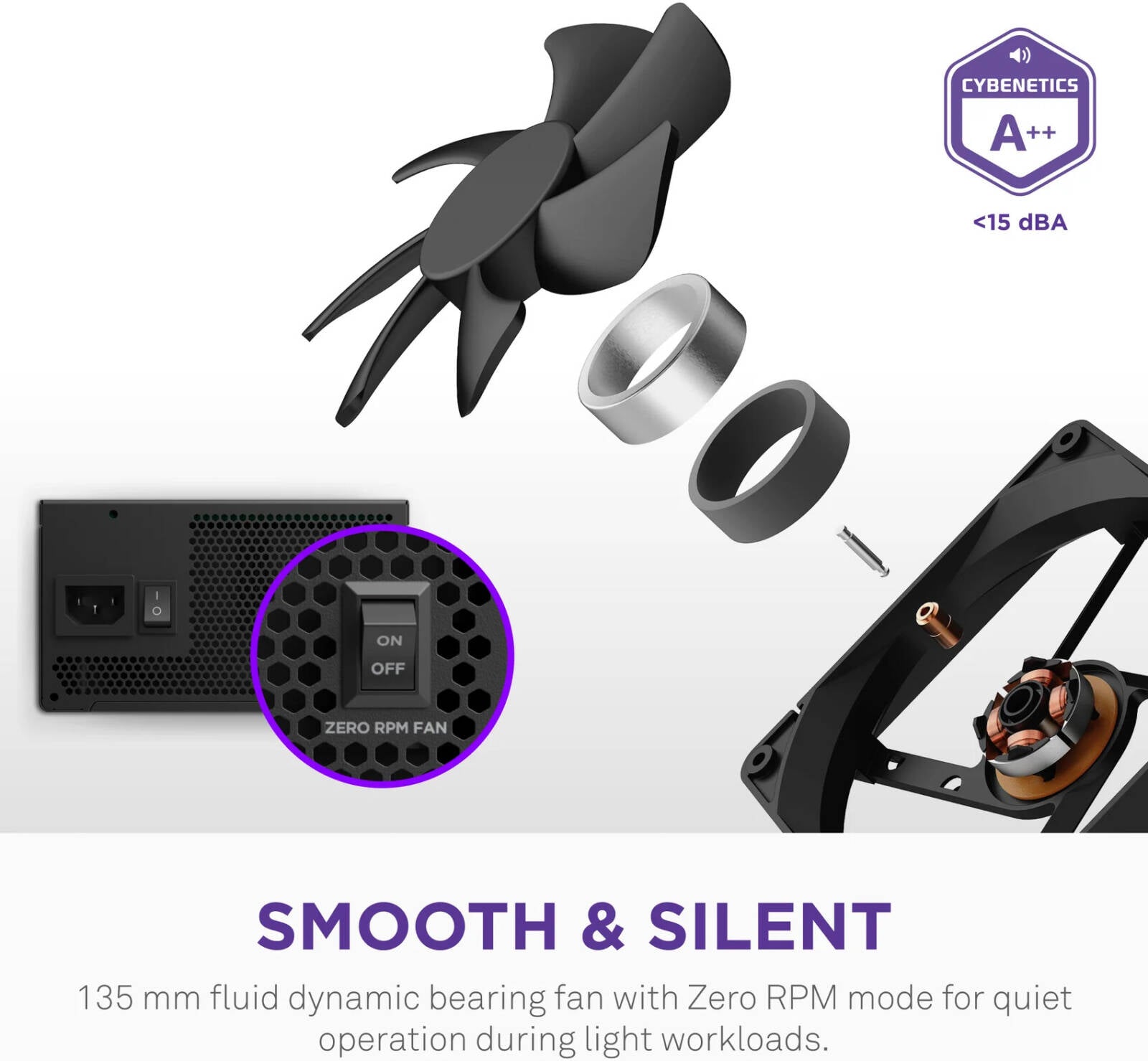

FDB Fan with Zero RPM Mode: 135 mm fluid dynamic bearing fan stays quiet and efficient, with Zero RPM mode during light workloads for silent operation.

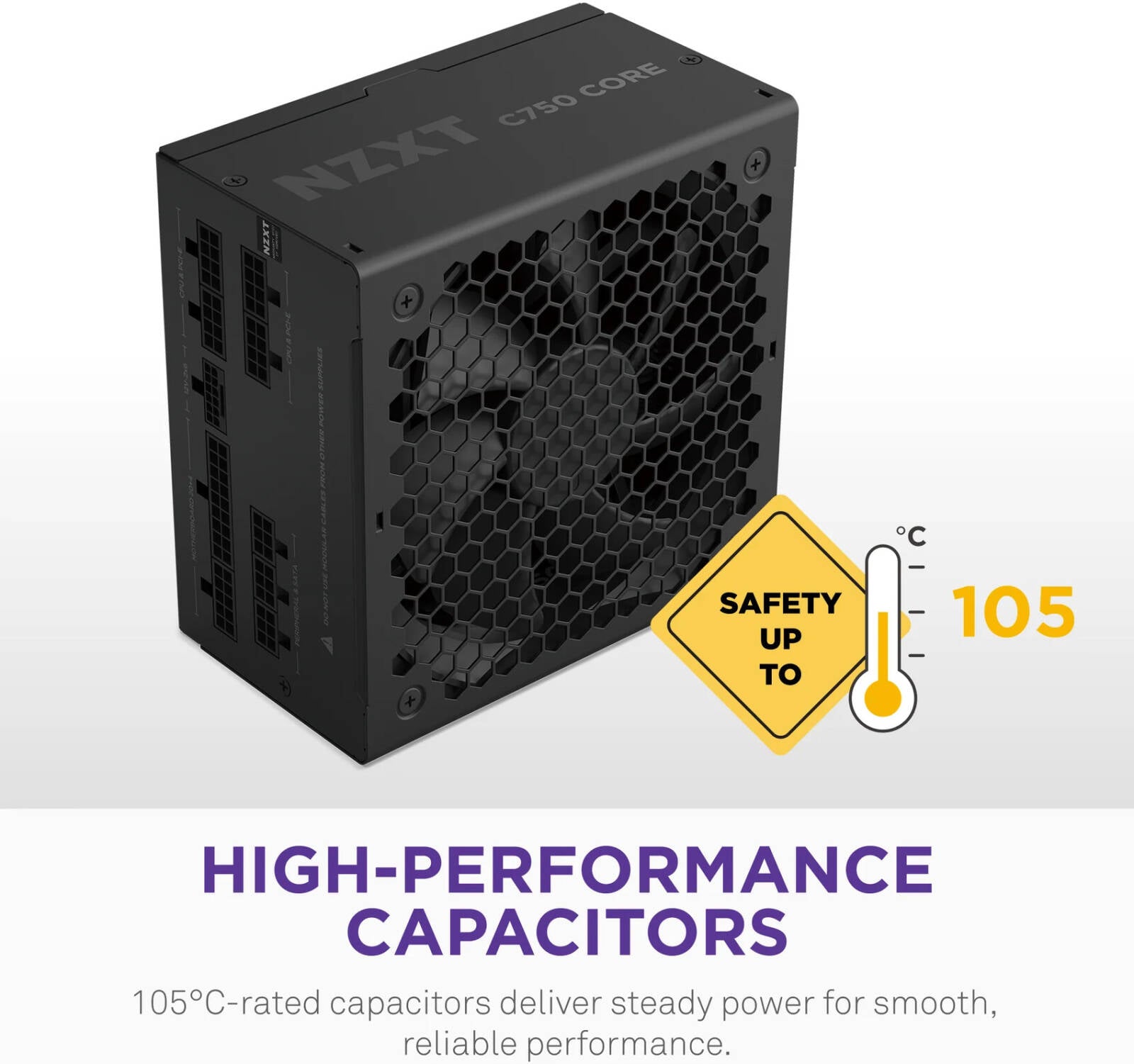

Premium 105°C-Rated Capacitors: High-quality components ensure stable, long-lasting performance across a wide range of system loads.
Fully Modular with Embossed Cables: Use only the cables you need with a clean, compact design and durable, flexible cables for easy routing.

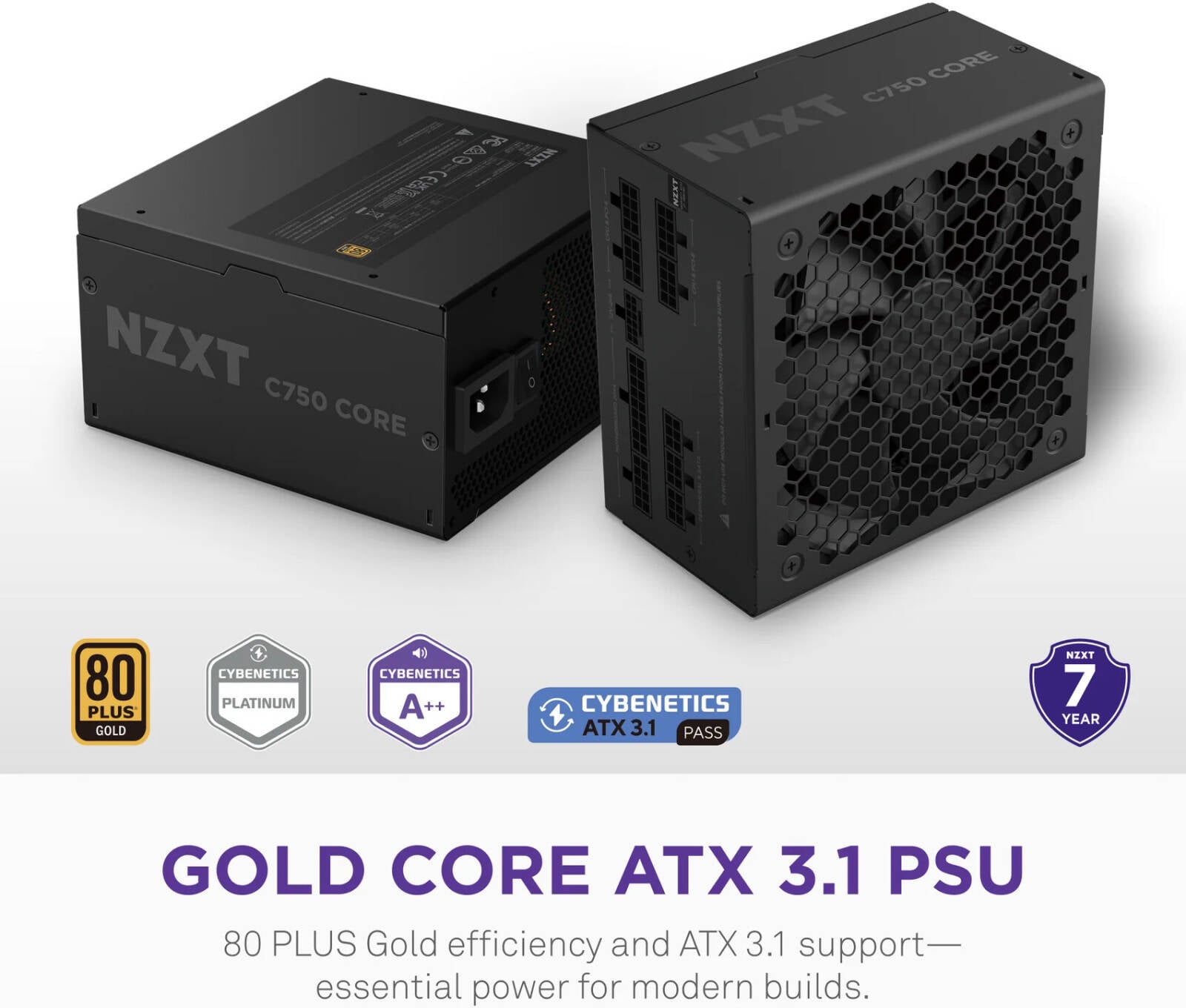

The NZXT Gold Core is an ATX 3.1, fully modular PSU with 80 PLUS Gold and Cybenetics Platinum efficiency, A+/A++ noise rating, and a 12V-2x6 PCIe 5.1 connector. Built for modern GPUs, it delivers clean, quiet power with easy cable management for performance PCs.

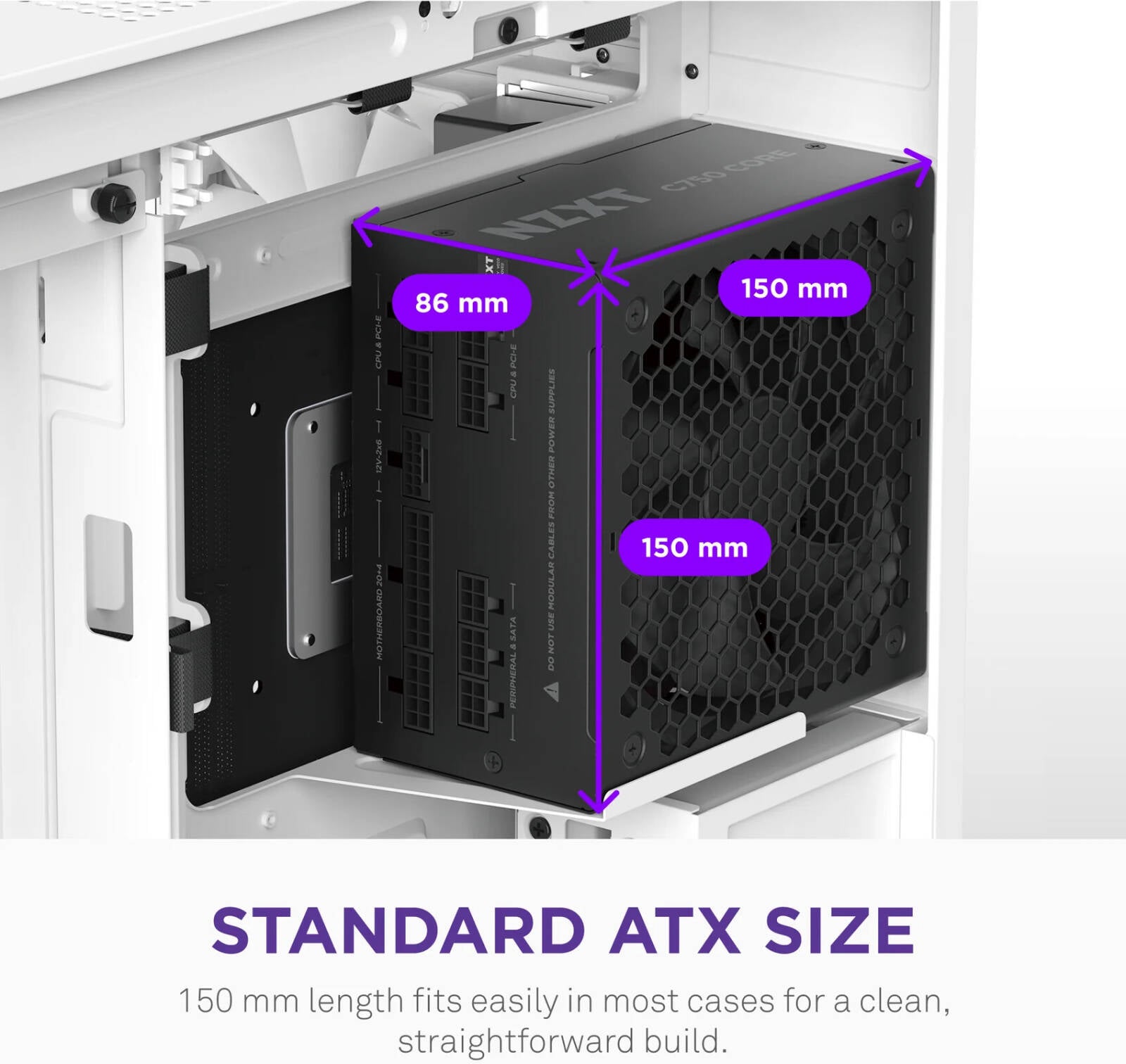

| Dimensions |
Width: 150 mm Height: 86 mm Depth: 150 mm |
| General |
Wattage: 750 W Form factor: ATX ATX version: 3.1 80 PLUS rating: Gold Cybenetics efficiency: Platinum Cybenetics noise: A++ Modular: Fully modular Capacitors: 105°C performance capacitors Cable type: Individually embossed with cable comb Zero RPM fan mode: Yes |
| Cable Length & Connector Quantity |
24-pin ATX power cable: 600 mm (×1) 4+4-pin CPU power cable: 700 mm (×1) 8-pin CPU power cable: 700 mm (×1) 6+2-pin PCIe power cable: 650 mm (×2) 16-pin (12+4) 12V-2×6 PCIe power cable: 650 mm (×1, 300 W) SATA cables: 500 + 100 mm (×8) Peripheral cables: 500 + 100 mm (×3) |
| AC Input Rating |
100–240 Vac, 10–5 A, 50–60 Hz 200–240 Vac (South Korea): 5 A, 50–60 Hz |
| DC Output Rating |
+3.3 V & +5 V: 20 A (120 W) +12 V: 62.5 A (750 W) 5VSB: 3 A (15 W) Total output power: 750 W |
| Energy Efficiency |
80 PLUS rating: Gold 10% load: 87.9% @ 115 V 20% load: 91.63% @ 115 V 50% load: 92.11% @ 115 V 100% load: 89.53% @ 115 V |
| Fan Specifications |
Size: 135 mm Type: PWM |
