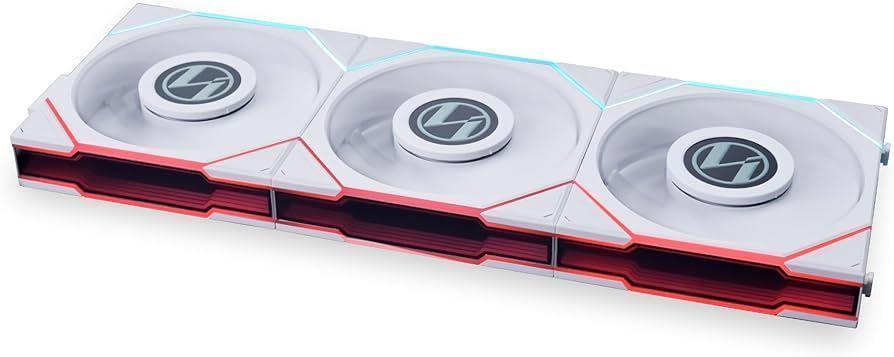

Lian Li UNI FAN TL 120 1.6" LCD Screen 3x120mm fans, Reverse Blade - White - مروحة تبريد

VendorLian Li
Share
- WhatsApp
- Deel
- Tweet
- Pin it
- Messenger
- Email

Description

Noise-optimized and performance-oriented fan.
LCP (liquid crystal polymer) fan blades are used for tight tolerance.
FDB bearing with copper shielding to ensure stable rotation of the impeller.
Enlarged infinity mirror around the frame with a longer light guide for a unified daisy-chained look.
Features two light zones for increased lighting customizability.
UNIFAN interlocking system for ease of cable management.
Cable connection is supported on both sides of the fan.
Support up to 10 fans per controller port via a daisy-chain POGO cable.
LED lighting and fan speed controller shared with UNIFAN TL LCD.
Complete software control with L-Connect 3.
The controller is required to use the fans.

MODEL NAME	UNI FAN TL LCD 120				UNI FAN TL LCD 140
MODEL NO.	12TLLCD3B	12TLLCD3W	12TLLCD1B	12TLLCD1W	14TLLCD1B	14TLLCD1W
COLOR	BLACK	WHITE	BLACK	WHITE	BLACK	WHITE
NUMBER OF FANS	3	3	1	1	1	1
CONTROLLER	Yes		No		NO
CONNECTOR TYPE	UNI FAN Controller Cable x 1 (P-7P)		UNI FAN Controller Cable x 1 (P-7P)		UNI FAN Controller Cable x 1 (P-7P)
FAN DIMENSION	124 x 120 x 28 mm				144 X 140 X 28 (mm)
FAN SPEED	0, 350~1900 RPM				0, 400~1600 RPM
MAX. AIR PRESSURE	2.9 mmH2O (Maximum)				3.5 mmH2O (Maximum)
MAX. AIRFLOW	62 CFM (Maximum)				68.1 CFM (Maximum)
ACOUSTIC NOISE	27 dB(A) Max				28.5 dB(A) Max
INPUT POWER	7.08W				6.72W
MATERIAL	PA66 / PBT
RATED VOLTAGE	DC 12V (FAN) & 5V (LED)
BEARING TYPE	Fluid Dynamic Bearing (FDB)
OPERATE VOLTAGE	DC12V & 5V
WARRANTY	3 years

MODEL NAME	UNI FAN TL LCD 120 REVERSE BLADE			UNI FAN TL LCD 140 REVERSE BLADE
MODEL NO.	12RTLLCD3B	12RTLLCD3W	12RTLLCD1B	12RTLLCD1W	14RTLLCD1B	14RTLLCD1W
COLOR	BLACK	WHITE	BLACK	WHITE	BLACK	WHITE
NUMBER OF FANS	3	3	1	1	1	1
CONTROLLER	Yes		No		NO
CONNECTOR TYPE	UNI FAN Controller Cable x 1 (P-7P)		UNI FAN Controller Cable x 1 (P-7P)		UNI FAN Controller Cable x 1 (P-7P)
FAN DIMENSION	124 x 120 x 28 mm				144 X 140 X 28 (mm)
FAN SPEED	0, 350~1900 RPM				0, 350~1600 RPM
MAX. AIR PRESSURE	2.83 mmH2O (Maximum)				3.1 mmH2O (Maximum)
MAX. AIRFLOW	54.3 CFM (Maximum)				64 CFM (Maximum)
ACOUSTIC NOISE	31 dB(A) Max				29.4 dB(A) Max
INPUT POWER	7.08W				6.72W
MATERIAL	PA66 / PBT
RATED VOLTAGE	DC 12V (FAN) & 5V (LED)
BEARING TYPE	Fluid Dynamic Bearing (FDB)
OPERATE VOLTAGE	DC12V & 5V
