Gigabyte X870E Aorus Elite X3D ICE WiFi7 DDR5 AM5 AMD ATX Gaming Motherboard - اللوحة الأم
Product SKU:
Available:
Only 3 in stock
3 in stock
In stock
Pre-order
Out of stock
QAR 1,799.00
Want it delivered by Today? Order before 10:00 PM
GIGABYTE X870E AORUS ELITE X3D ICE AMD AM5 LGA 1718 ATX Motherboard, Supports AMD Ryzen 9000/8000/7000 Series Processors, DDR5, 16+2+2 Power Phase, 4x M.2, PCIe 5.0, WIFI, 5 GbE/ white
Key Features
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4

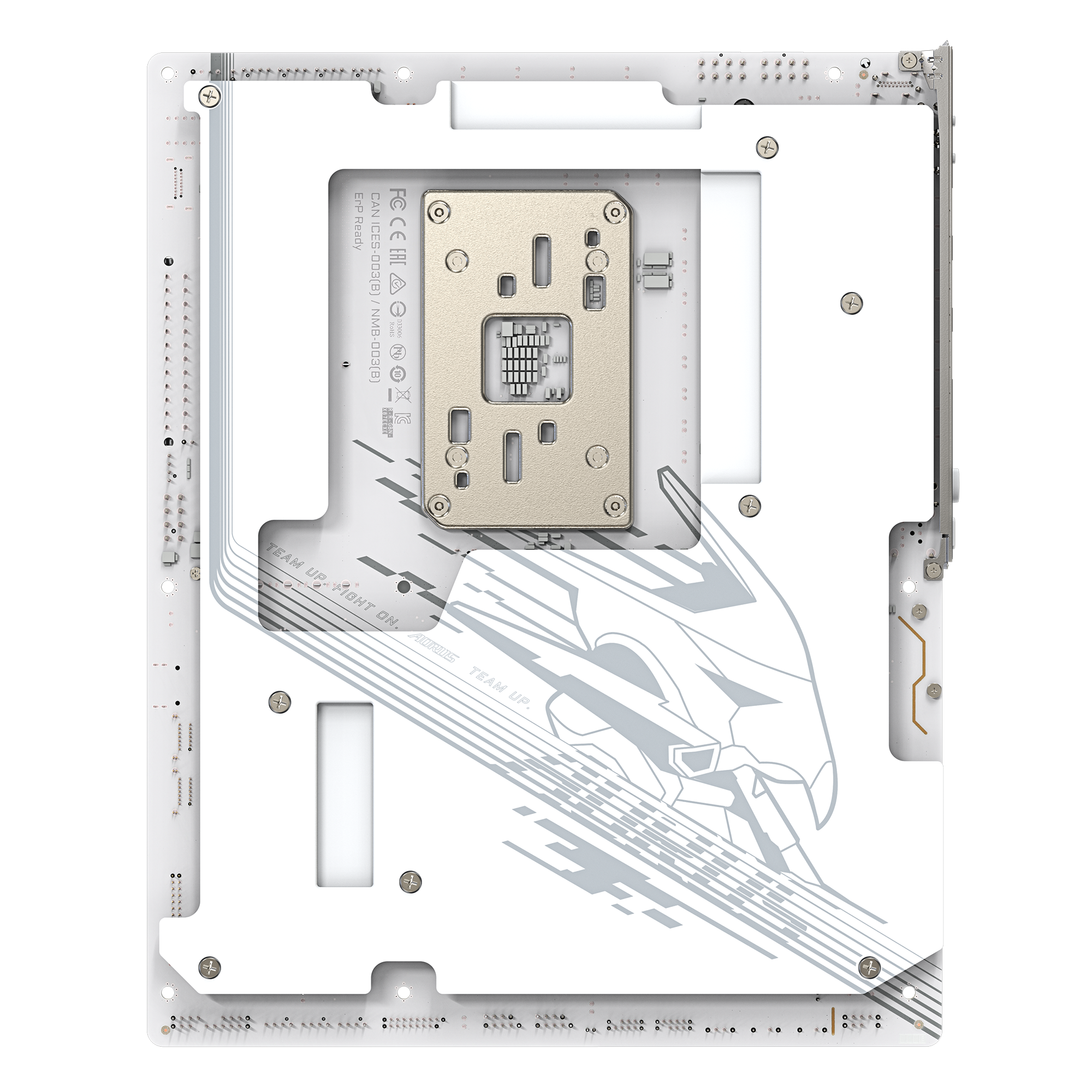

- PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
- Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
| Category | Details |
|---|---|
| CPU | AMD Socket AM5Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870E |
| Memory | 4× DDR5 DIMM slots, up to 256 GB (64 GB per DIMM)Supports DDR5 4800–9000 MT/s (OC)Dual ChannelNon-ECC Unbuffered DIMM (1Rx8/2Rx8/1Rx16)Supports AMD EXPO™ & XMP |
| Onboard Graphics | AMD Radeon™ Graphics (CPU dependent)2× USB4 Type-C (DP 1.4, HDR, up to 3840×2160@240Hz)1× HDMI 2.1 (4096×2160@60Hz, HDR, HDCP 2.3)1× Front HDMI 1.4 (1920×1080@30Hz) |
| Audio | Realtek® ALC1220 CODEC2/4/5.1/7.1-channel HD AudioS/PDIF Out |
| LAN | Realtek® 5GbE LAN (5G / 2.5G / 1G / 100M) |
| Wireless | Qualcomm® Wi-Fi 7 (802.11a/b/g/n/ac/ax/be)2.4/5/6 GHz bandsBluetooth® 5.4Supports 320 MHz (Windows 11 required) |
| Expansion Slots | CPU:1× PCIe x16 (PCIe 5.0 for Ryzen 9000/7000)Chipset:1× PCIe 4.0 x41× PCIe 3.0 x2 |
| Storage Interface | 4× M.2 slots (PCIe 5.0 / 4.0 depending on CPU)4× SATA 6Gb/sRAID 0/1/10 (SATA)RAID 0/1/5/10 (NVMe – RAID 5 Ryzen 9000 only) |
| USB Ports | Rear: USB4 Type-C ×2, USB-C Gen2 ×1, USB-A Gen2 ×5, USB-A Gen1 ×3Internal: USB-C Gen2x2 ×1 (65W PD), USB 3.2 Gen1 ×4, USB 2.0 ×4 |
| Internal Connectors | 24-pin ATX, 2× 8-pin CPU power, PCIe powerCPU fan ×2, System fan ×6RGB Gen2 ×3, RGB ×1M.2 ×4, SATA ×4Front panel, Audio, TPM, Sensors, Clear CMOS |

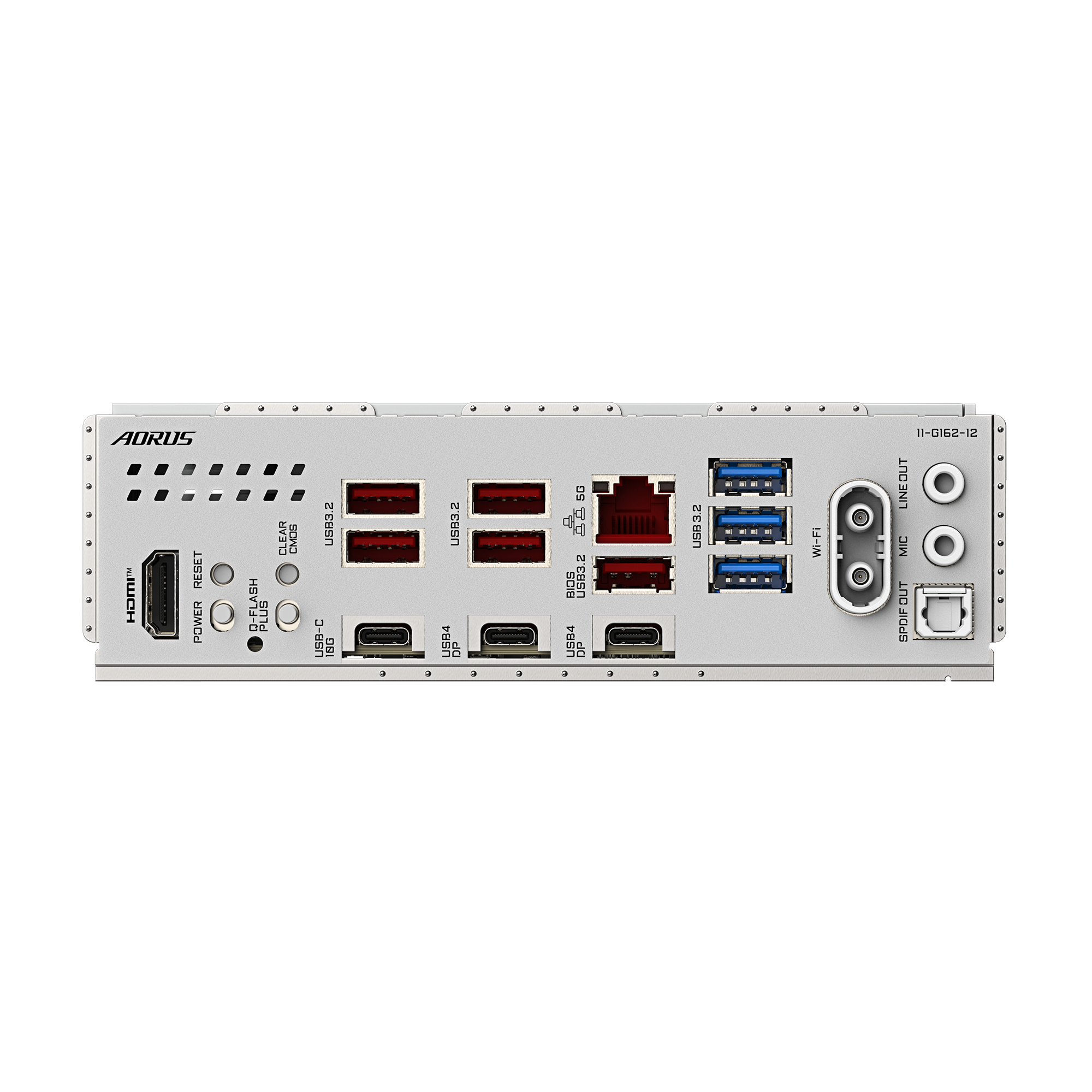

| Back Panel I/O | HDMI ×1USB4 Type-C ×2USB-C Gen2 ×1USB-A Gen2 ×5USB-A Gen1 ×3RJ-45 LAN ×1Audio jacks ×2, Optical S/PDIF ×1Antenna connectors ×2 |
| I/O Controller | iTE® I/O Controller |
| H/W Monitoring | Voltage, temperature, fan speed, water flow, noise detection, fan control |
| BIOS | 512 Mbit FlashAMI UEFI BIOS |
| Special Features | GIGABYTE Control Center (GCC)Q-Flash / Q-Flash PlusSmart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX – 30.5 cm × 24.4 cm |
