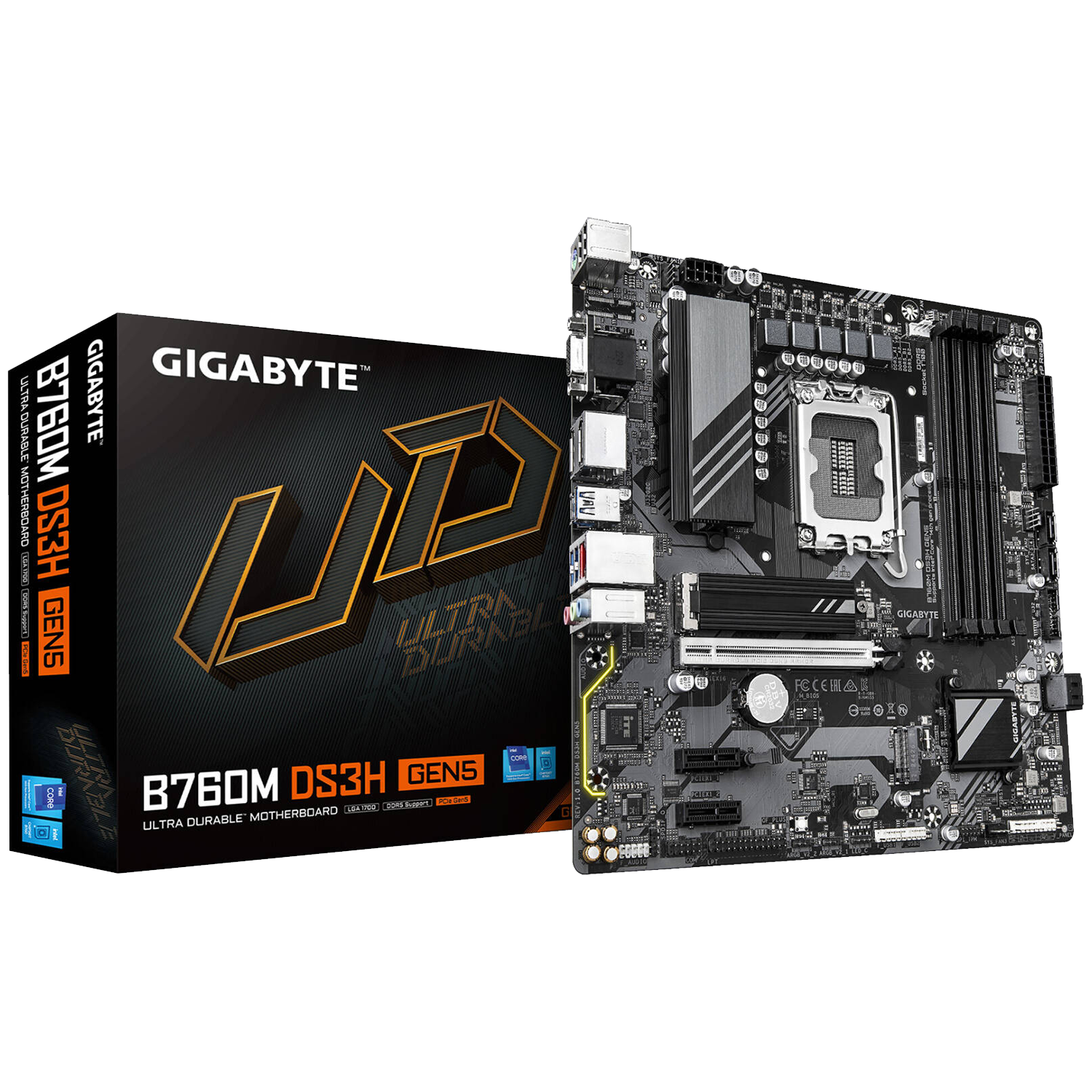

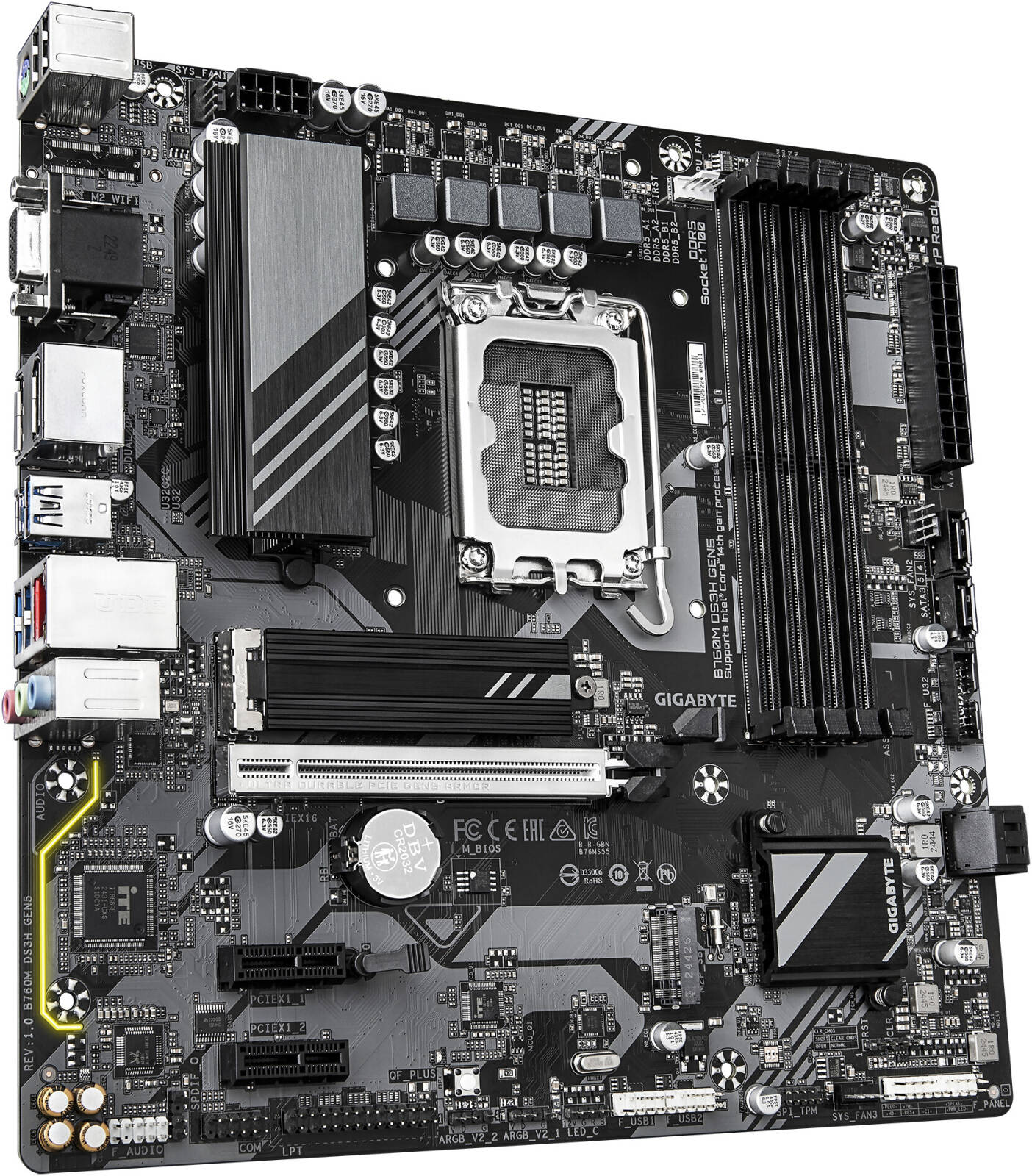

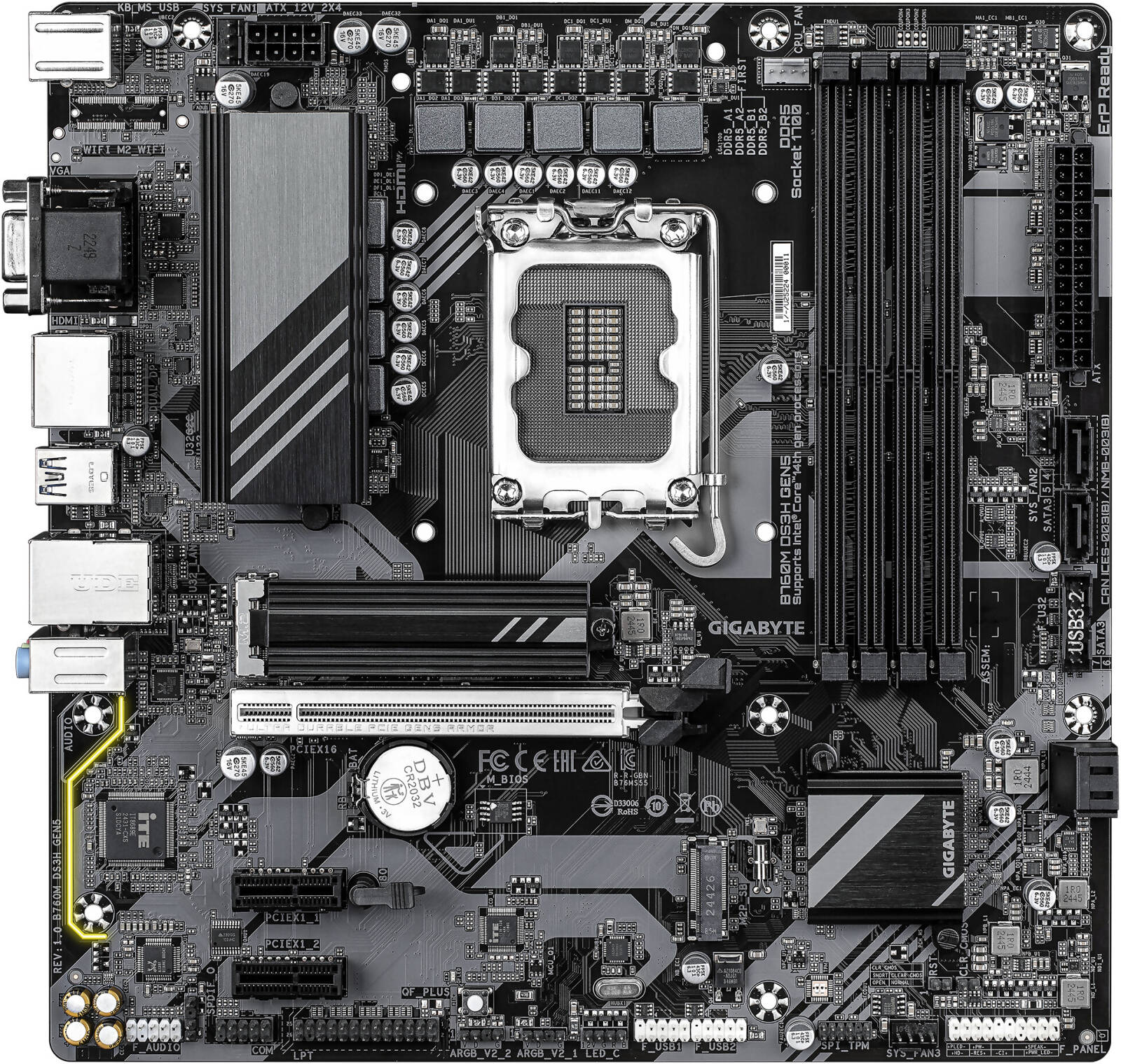

GIGABYTE B760M DS3H GEN5 LGA1700 Micro ATX Motherboard, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 with PCIe UD Slot, 2x M.2 Slots - اللوحة الأم
Product SKU: B760M-DS3H-GEN5
Available:
Only 5 in stock
5 in stock
In stock
Pre-order
Out of stock
QAR 649.00
Want it delivered by Today? Order before 10:00 PM
GIGABYTE B760M DS3H GEN5 LGA1700 Micro ATX Motherboard, Intel B760 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 with PCIe UD Slot, 2x M.2 Slots | B760M-DS3H-GEN5
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th /12th processors
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
- Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
- Fast Networks : 2.5 GbE LAN | Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI, D-Sub
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
| Product information | |
| CPU |
LGA1700 socket; Supports 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold, Celeron® (see GIGABYTE website for latest support). L3 cache varies with CPU
|
| Chipset |
Intel® B760 Express Chipset
|
| Memory |
4× DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM), Dual channel
• 14th/13th Gen i9/i7: DDR5 7600(O.C.)–4400 MT/s • 13th Gen i5/i3 & 12th Gen Core/Pentium/Celeron: DDR5 4800/4400 MT/s Supports ECC Un-buffered DIMM (non-ECC mode), non-ECC Un-buffered DIMM, XMP modules |
| Onboard Graphics |
Intel® HD Graphics (CPU dependent)
• D-Sub: up to 1920×1200@60Hz • HDMI: up to 4096×2160@60Hz (HDMI 2.1, HDCP 2.3) • 2× DisplayPort: up to 4096×2304@60Hz (DP 1.2, HDCP 2.3) Supports quad-display |
| Audio |
Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, configurable via software Supports S/PDIF Out
|
| LAN |
Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps)
|
| Expansion Slots |
• CPU: 1× PCIe 5.0 x16 (graphics card or NVMe SSD only)
• Chipset: 2× PCIe 3.0 x1 |
| Storage |
• CPU: 1× M.2 (2280, PCIe 4.0 x4/x2)
• Chipset: 1× M.2 (2280, PCIe 4.0 x4/x2), 4× SATA 6Gb/s Supports RAID 0/1/5/10 (SATA only) |
| USB |
• Back panel: 1× USB-C (3.2 Gen2), 3× USB 3.2 Gen1, 2× USB 2.0
• Internal: 1× USB 3.2 Gen1 header (2 ports), 1× USB 3.2 Gen1 header (2 ports), 2× USB 2.0 headers (4 ports) |
| Internal I/O |
24-pin ATX, 8-pin ATX 12V, 1× CPU fan, 3× system fans, 2× ARGB Gen2 headers, 1× RGB header, 2× M.2, 4× SATA, front panel, audio header, USB headers, TPM header, serial, parallel, S/PDIF Out, Q-Flash Plus button, reset, Clear CMOS
|
| Back Panel |
2× USB 2.0, 1× PS/2, 1× D-Sub*, 1× HDMI*, 2× DisplayPort*, 3× USB 3.2 Gen1, 1× USB-C (3.2 Gen2), 1× RJ-45, 3× audio jacks (*support may vary by CPU)
|
| I/O Controller |
iTE® I/O Controller Chip
|
| H/W Monitoring |
Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan speed control (depends on fan)
|
| BIOS |
128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Unique Features |
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
|
| Bundled Software |
Norton® Internet Security (OEM)
|
| OS Support |
Windows 11 64-bit, Windows 10 64-bit
|
| Form Factor |
Micro ATX; 24.4 × 24.4 cm
|
