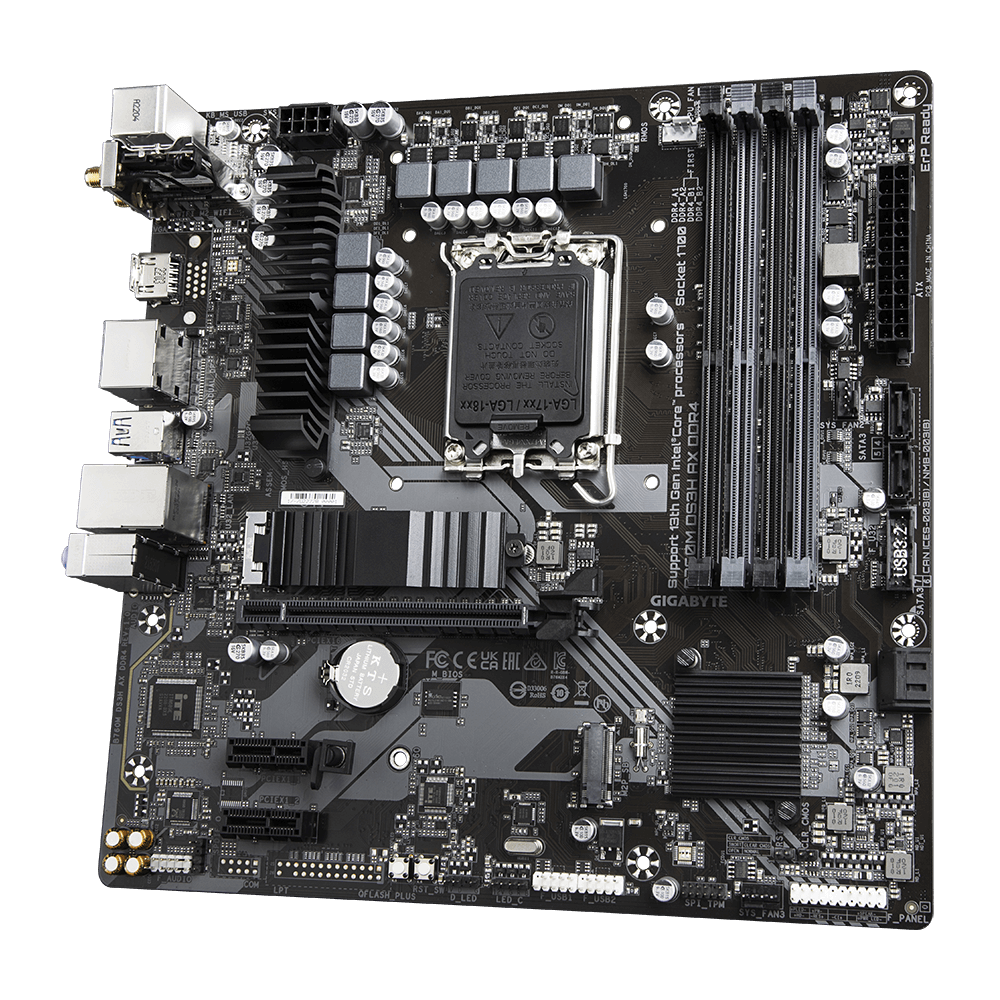

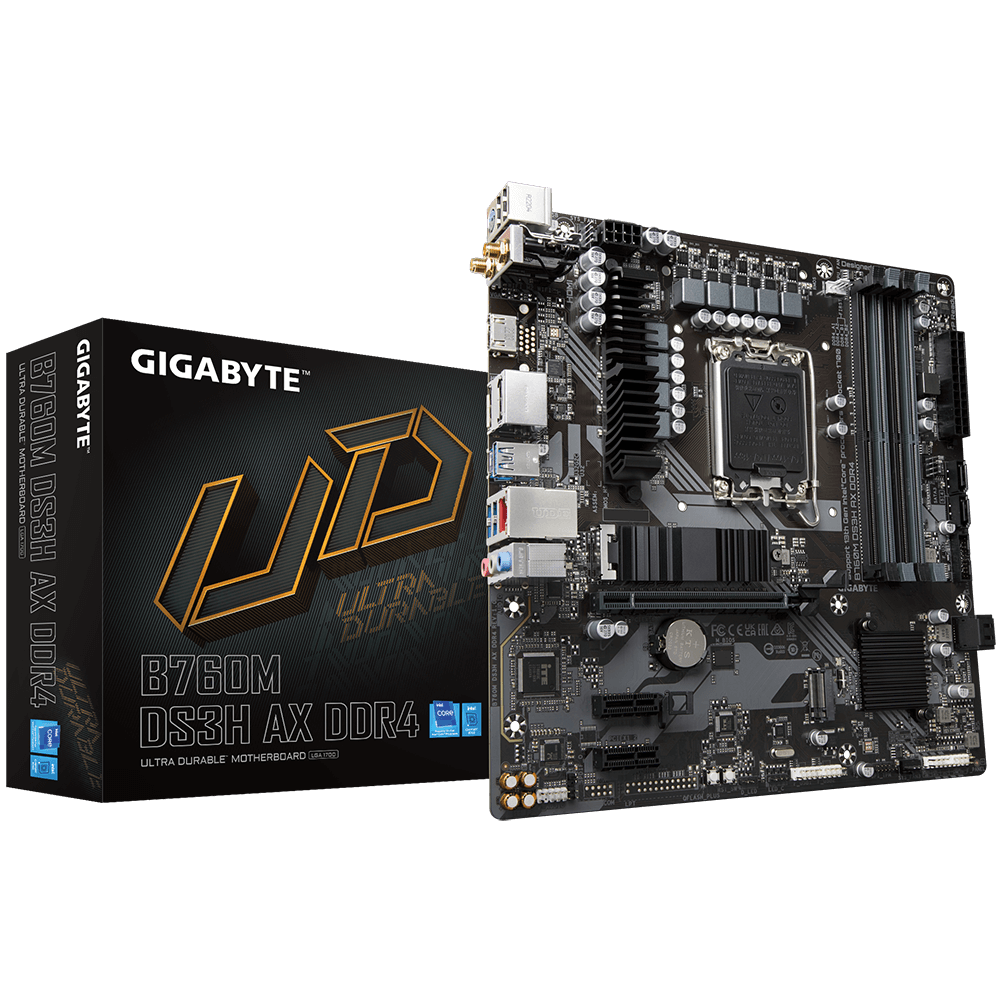

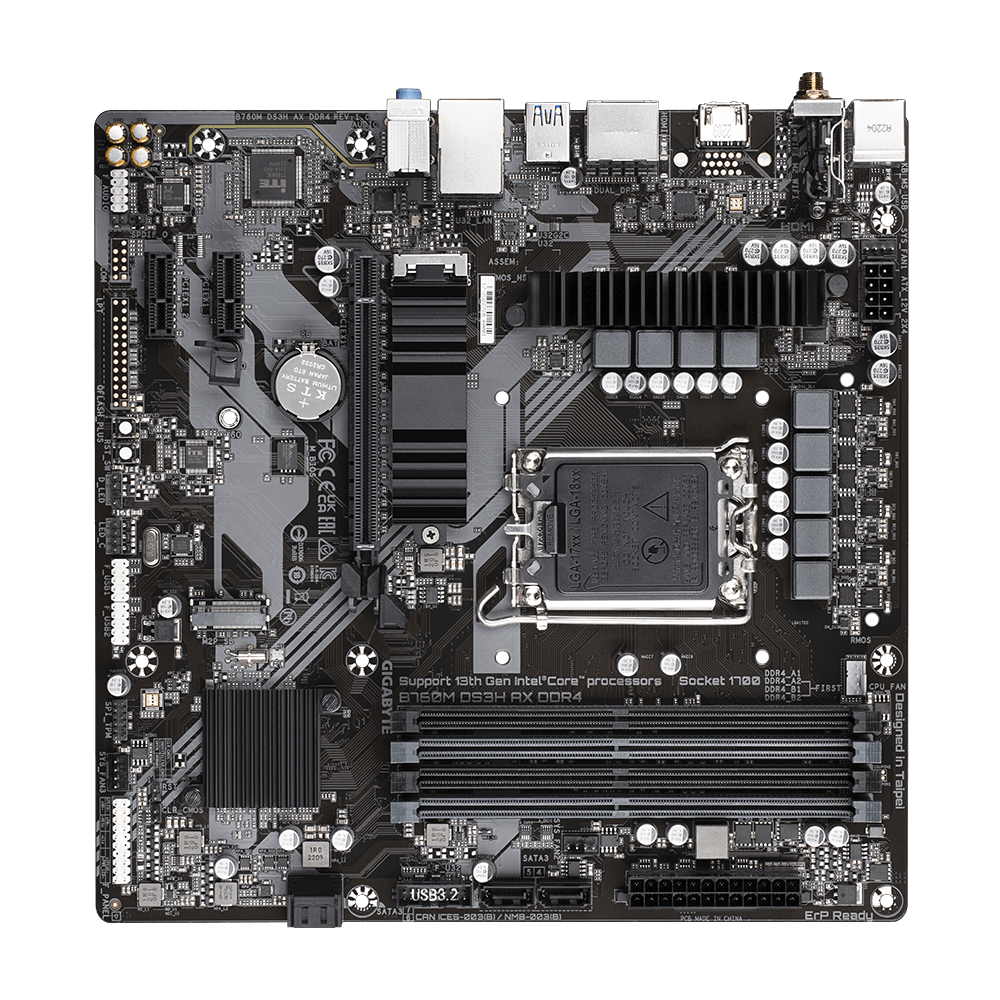

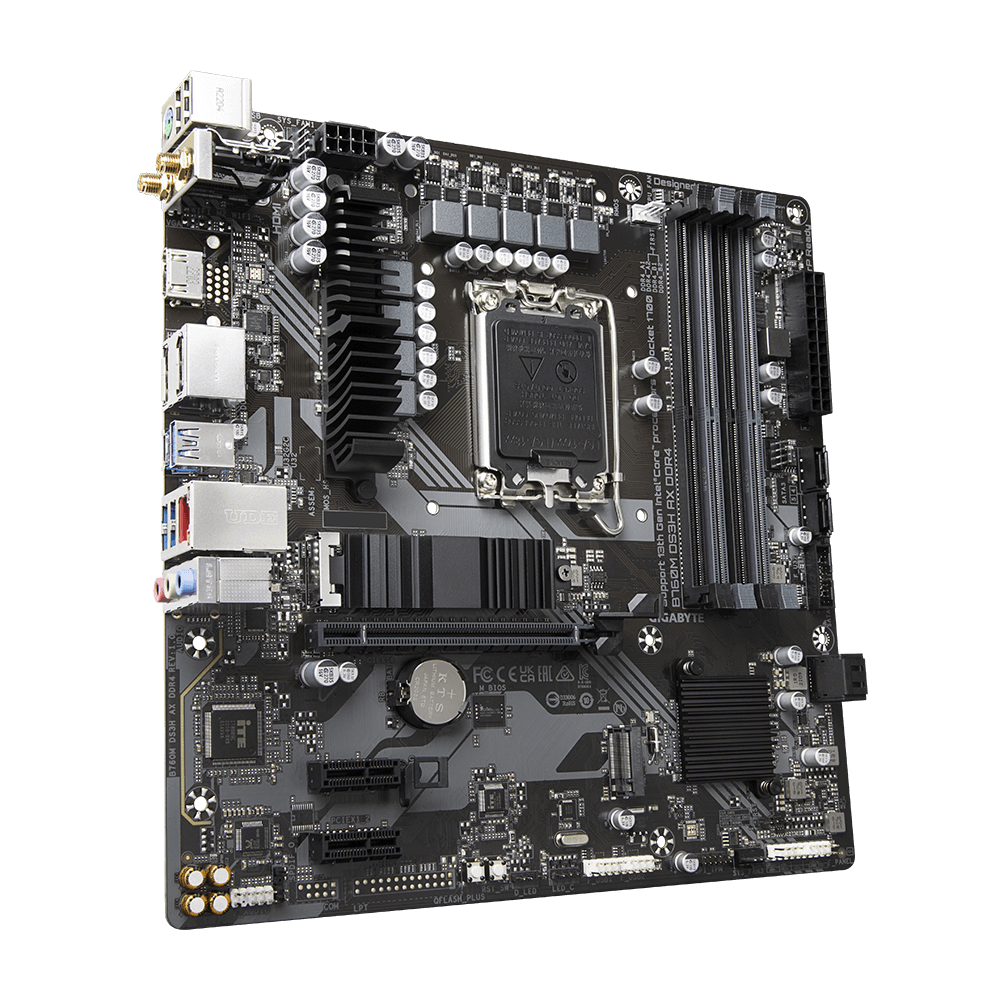

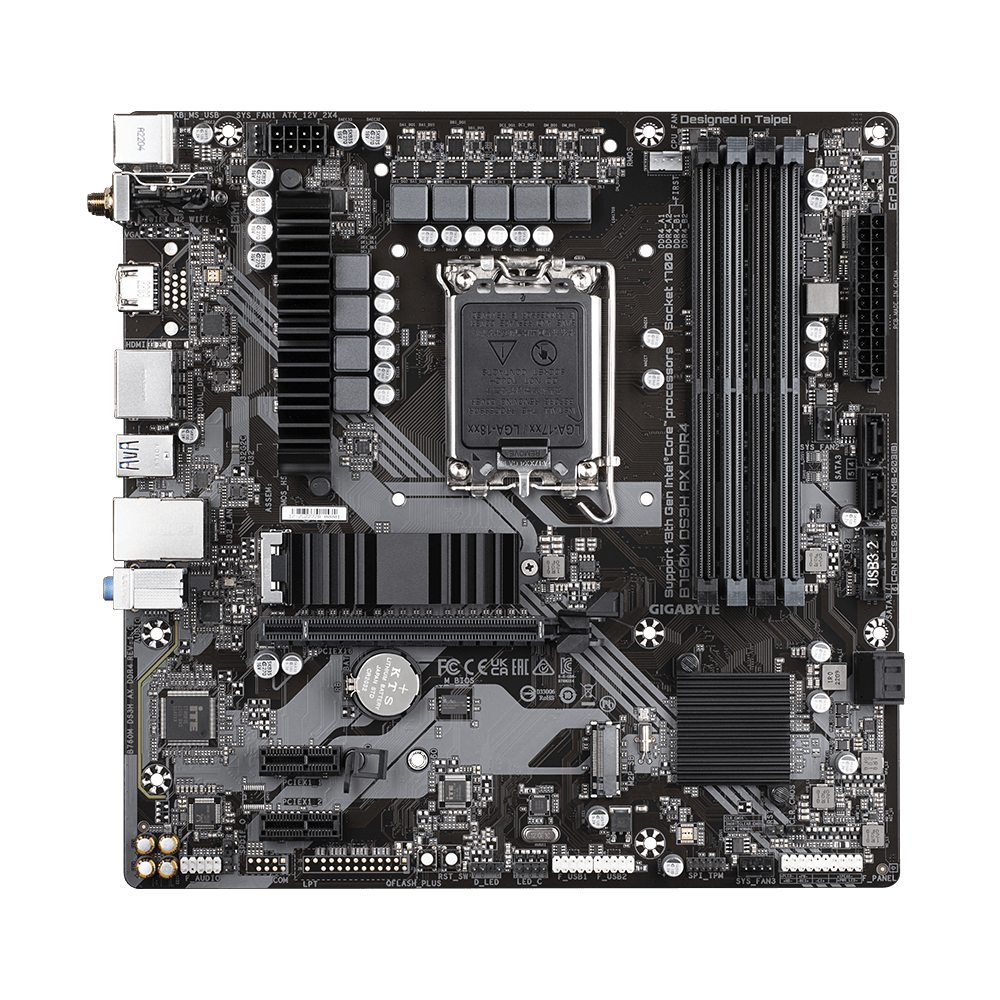

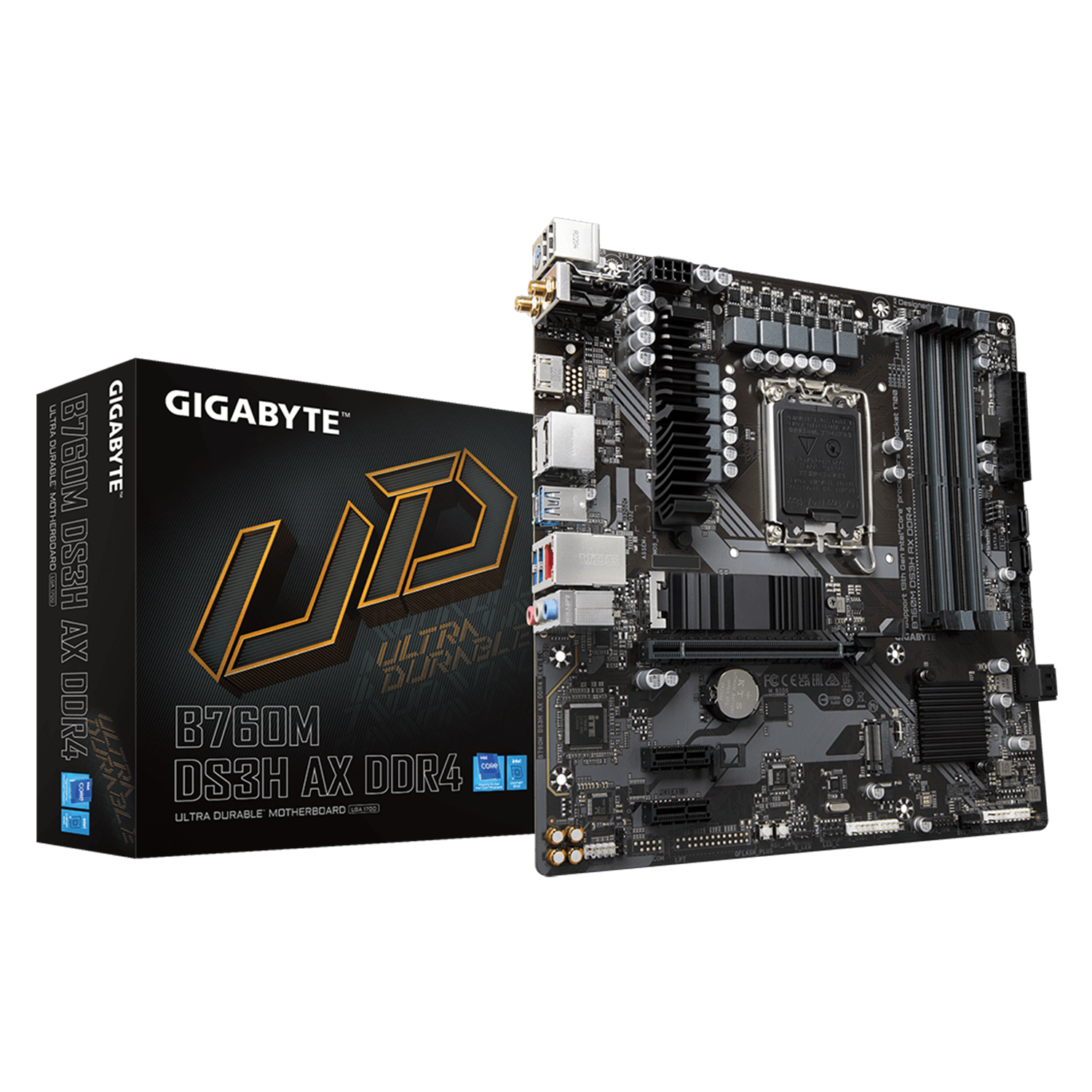

GIGABYTE B760M DS3H AX LGA1700 mATX Motherboard, Wi-Fi 6E, 4xDDR4 DIMM, PCIE 4.0, Black - لوحه ام
Product SKU: B760M-DS3H-AX-DD R4
Available:
Only 3 in stock
3 in stock
In stock
Pre-order
Out of stock
QAR 699.00
Want it delivered by Today? Order before 10:00 PM
GIGABYTE B760M DS3H AX LGA1700 mATX Motherboard, Intel B760 Chipset, 4 x DDR4 DIMM, 128GB Max Capacity, PCIE 4.0, 2*M.2, 2.5GbE LAN / Wi-Fi 6E / BT 5.3, USB-Type-C/3.2, HDMI / DP | B760M-DS3H-AX-DDR4
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- M.2 Thermal Guard: To Ensure M.2 SSD Performance
- EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax

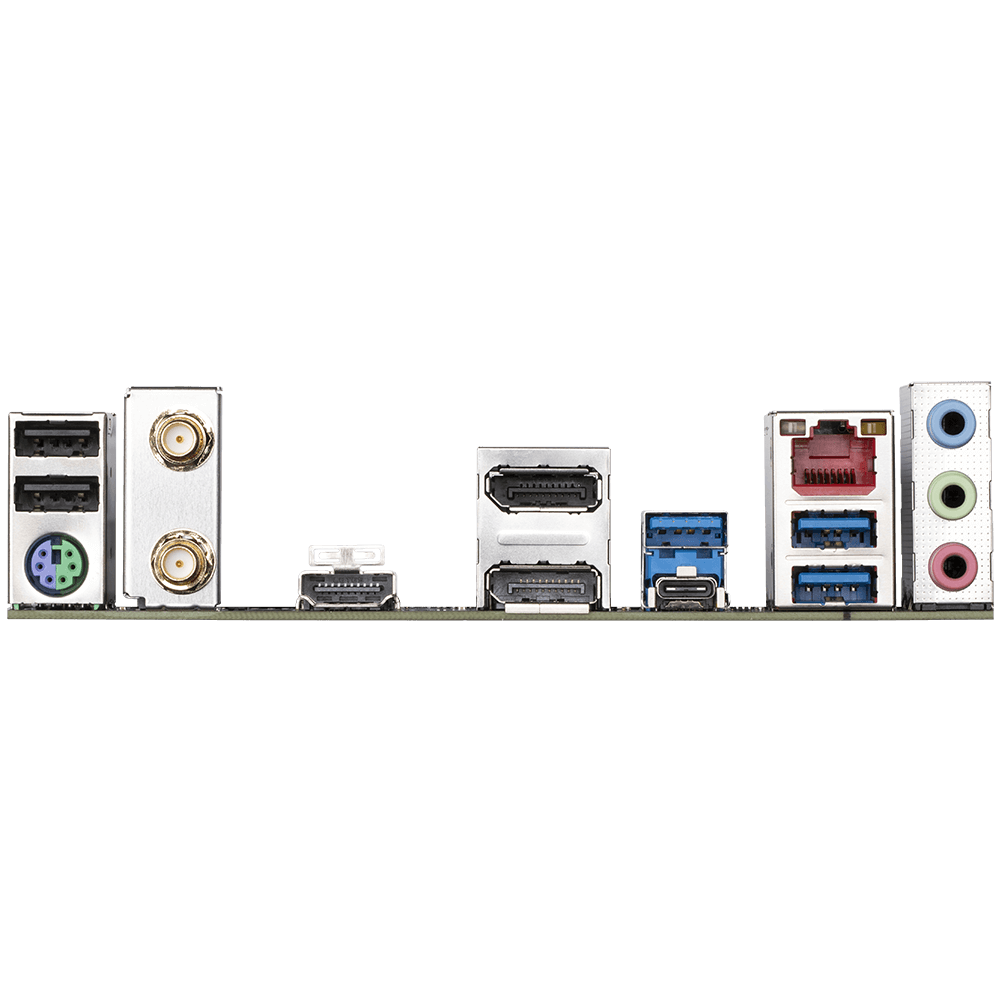

- Extended Connectivity: Rear USB-C® 10Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
| Product information | |
|
CPU
|
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
|
|
L3 cache varies with CPU
|
|
|
(Please refer to "CPU Support List" for more information.)
|
|
| Chipset |
Intel® B760 Express Chipset
|
|
Memory
|
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ ... (Refer to full list)
|
|
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
|
|
|
Dual channel memory architecture
|
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
|
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
|
|
|
Support for Extreme Memory Profile (XMP) memory modules
|
|
|
(Please refer to "Memory Support List" for more information.)
|
|
|
Onboard Graphics
|
Integrated Graphics Processor-Intel® HD Graphics support:
|
|
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
|
|
|
* Support for HDMI 2.0 version and HDCP 2.3.
|
|
|
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
|
|
|
* Support for DisplayPort 1.2 version and HDCP 2.3
|
|
|
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
|
|
|
* Support for DisplayPort 1.2 version.
|
|
|
(Graphics specifications may vary depending on CPU support.)
|
|
|
Support for up to triple-display at the same time
|
|
|
Audio
|
Realtek® Audio CODEC
|
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
|
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
|
|
|
Support for S/PDIF Out
|
|
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
|
|
Wireless Communication module
|
AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0)
|
|
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
|
|
| BLUETOOTH 5.2 | |
|
Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
|
|
|
Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
|
|
|
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
|
|
| BLUETOOTH 5.3 | |
|
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
|
|
|
Intel® Wi-Fi 6E AX211 (For PCB rev. 1.2)
|
|
|
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
|
|
| BLUETOOTH 5.3 | |
|
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
|
|
|
Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.3)
|
|
|
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
|
|
| BLUETOOTH 5.3 | |
|
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
|
|
|
(Actual data rate may vary depending on environment and equipment.)
|
|
|
Expansion Slots
|
CPU: |
|
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
|
|
| Chipset: | |
|
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
|
|
|
Storage Interface
|
CPU: |
|
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
|
|
| Chipset: | |
|
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
|
|
|
4 x SATA 6Gb/s connectors
|
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
|
|
|
USB
|
Chipset: |
|
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
|
|
|
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
|
|
|
2 x USB 2.0/1.1 ports on the back panel
|
|
|
Chipset+2 USB 2.0 Hubs:
|
|
|
4 x USB 2.0/1.1 ports available through the internal
|
|
