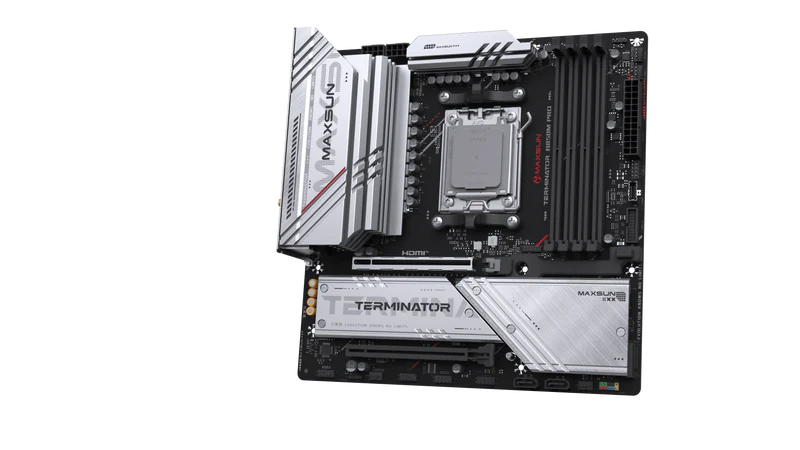

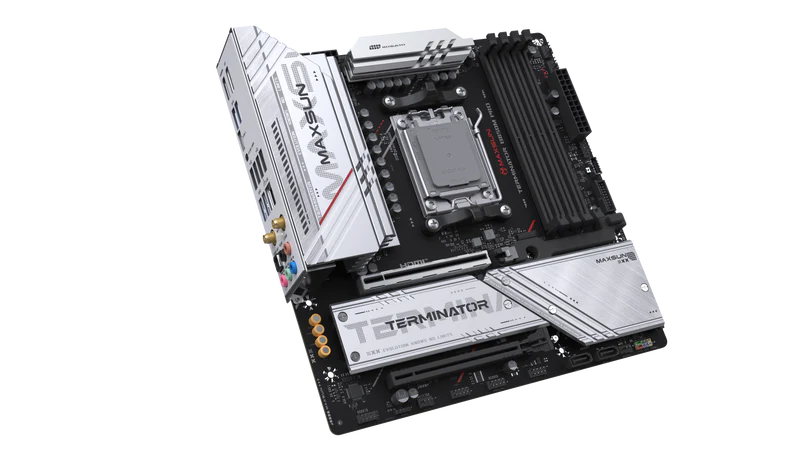

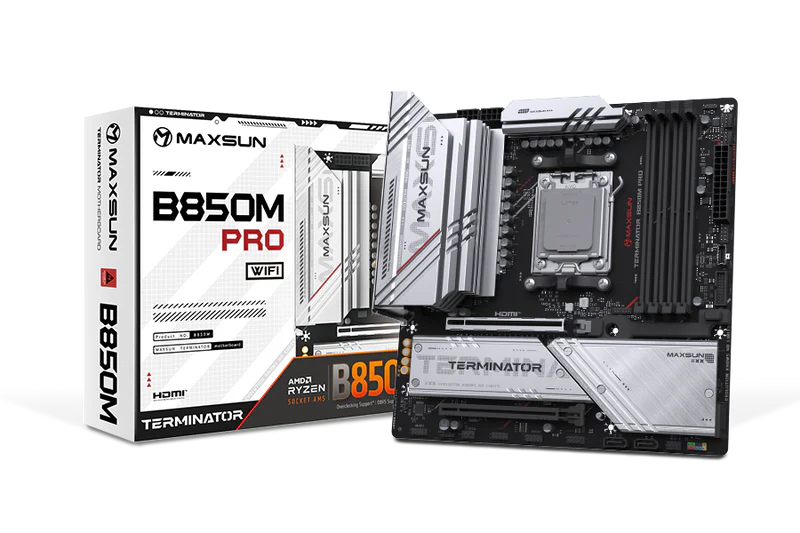

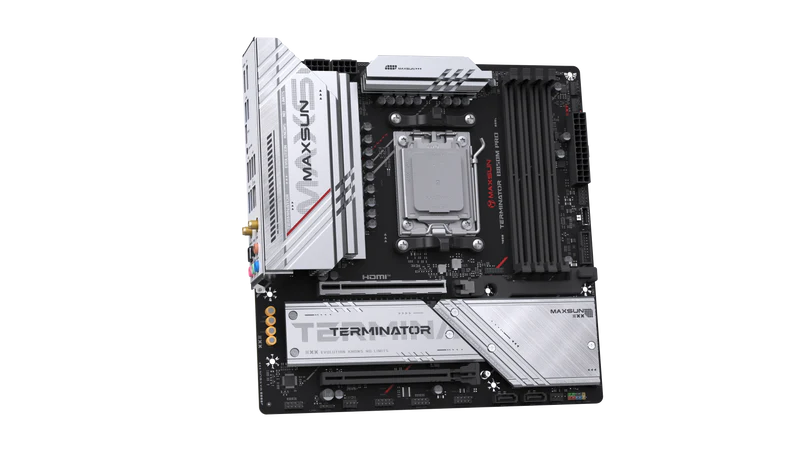

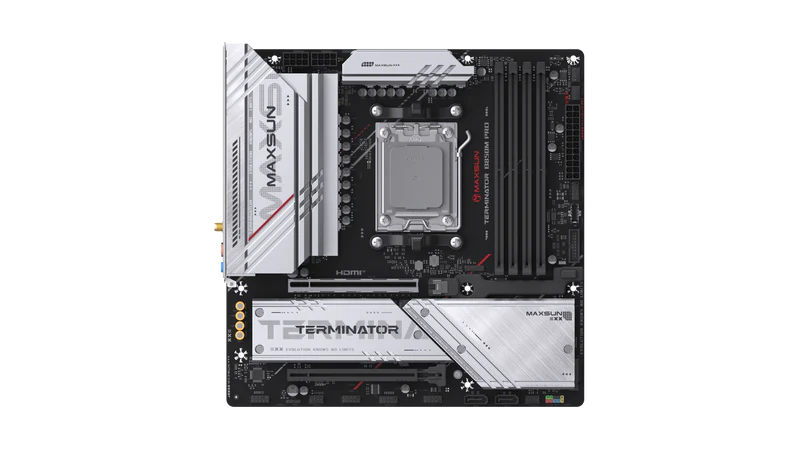

MAXSUN Terminator B850M PRO WIFI Motherboard Compatible with AMD AM5 Ryzen™ 7000, 8000, and 9000 series, Overclocking Support
Next-Gen CPU Support
Compatible with AMD Ryzen™ 7000, 8000, and 9000 series processors via the AM5 socket for future-proof performance.
High-Speed DDR5 Memory
Supports up to 192GB DDR5, with overclocking up to 8000MHz for faster data throughput and improved multitasking.
PCIe 5.0 & Triple M.2 Slots
Equipped with dual PCIe 5.0 M.2 slots and one PCIe 4.0 slot, ensuring ultra-fast storage and expansion capabilities.
Advanced Connectivity
Features Wi-Fi 6E, Bluetooth 5.2, and 2.5G Ethernet for stable, high-speed networking in all environments.

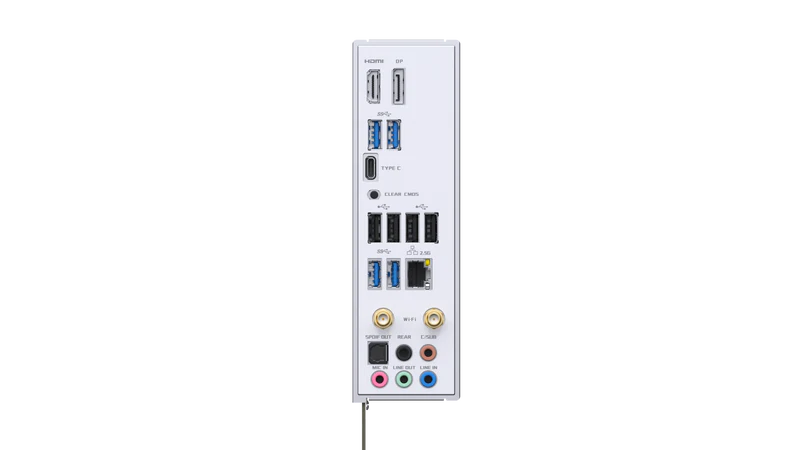

Comprehensive I/O Design
Includes 9 rear USB ports, front USB-C, multiple fan and ARGB headers, and a quick-access CLR_CMOS button for streamlined usability.
| Chipset | AMD B850 Chipset |
| Memory |
4× DIMM DDR5 slots, up to 192GB total capacity
|
| Supports dual-channel memory architecture |
Supports AMD EXPO memory overclocking
|
| Supported frequencies: |
4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz
|
| Display Outputs |
1× DP port, supports up to 4K @ 60Hz resolution
1× HDMI 1.4 port, supports up to 4K @ 30Hz resolution |
| Expansion Slots |
1× PCIe x16 slot (supports PCIe 5.0 x16 mode)
1× PCIe x16 slot (supports PCIe 4.0 x4 mode) |
| Audio |
Integrated Realtek ALC897 audio codec
|
| Networking |
1× Realtek RTL8125D 2.5G Ethernet port
1× MediaTek MT7922 wireless module: supports Wi-Fi 6E and Bluetooth v5.2 |
| Storage |
M.2_A slot (Key M): supports PCIe 5.0 x4/x2 mode, 2280 length
M.2_B slot (Key M): supports PCIe 5.0 x4/x2 mode, 2280 length M.2_C slot (Key M): supports PCIe 4.0 x2 mode, 2280 length |
| USB |
Onboard USB (7 total):
1× USB 5G 19-pin header (supports 2 USB 5G ports) 2× USB 2.0 9-pin headers (support 4 USB 2.0 ports) 1× USB 10G Type-C front panel port Rear I/O USB (9 total): 4× USB 5G Type-A ports 4× USB 2.0 Type-A ports 1× USB 10G Type-C port |
| Other Features |
1× 24-pin ATX power connector
2× 8-pin +12V CPU power connectors 1× 4-pin CPU_FAN header 1× 4-pin PUMP header 2× 4-pin SYS_FAN headers 2× 3-pin 5V ARGB headers 1× CLR_CMOS quick-access button |
