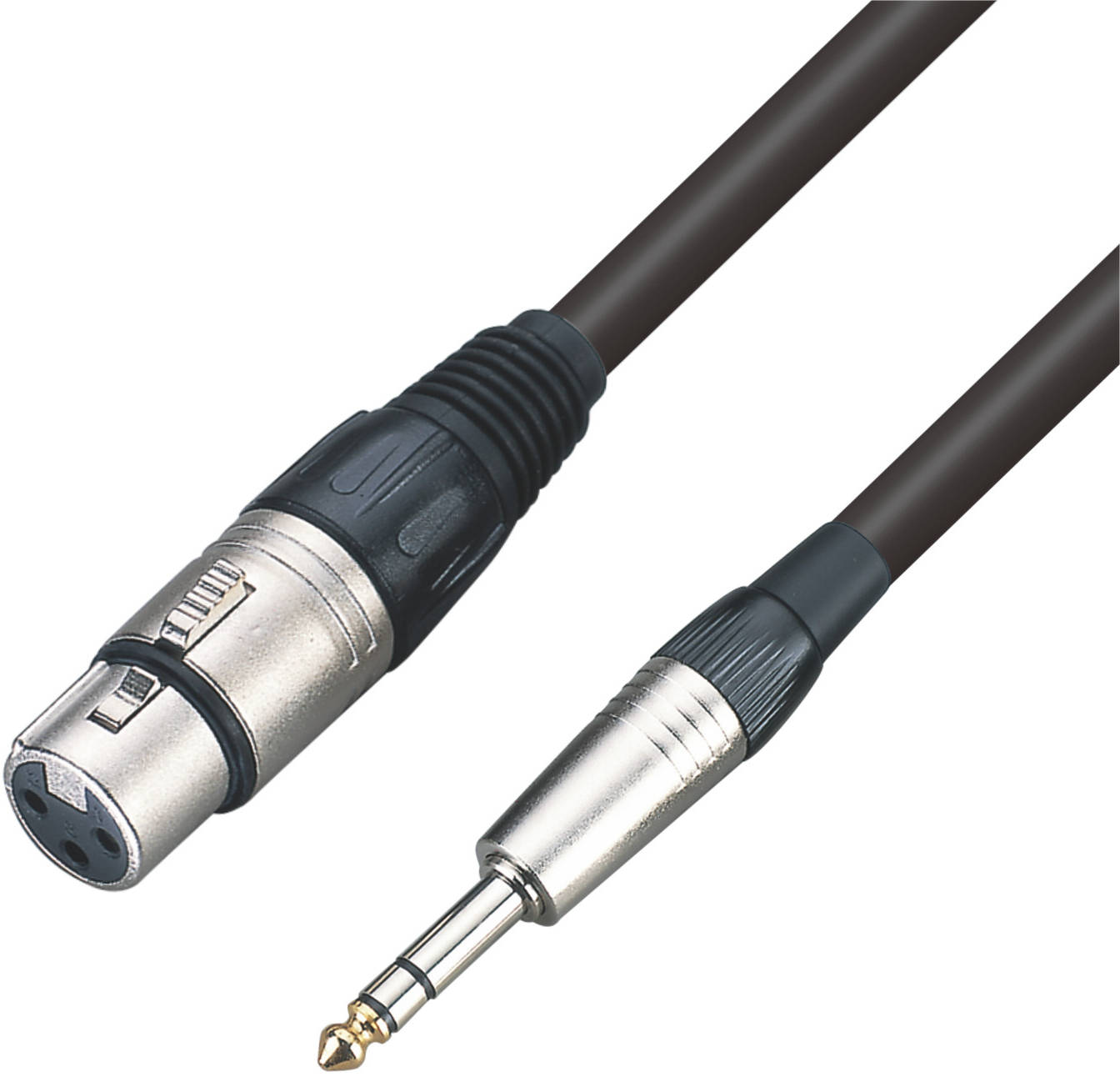

AVIA-TXF TRS Male to XLR Female Cable, PVC 6.0 mm Jacket Diameter, 24 AWG, PE 1.40 mm Conductor Insulation, Copper Spiral Shielding with 80 x 0.10 mm, 2m Cable Length -كيبل

Features Cables Wire

• Fine stranded wire for high-quality signal transmission

• Very robust, with thick soft PVC jacket

• Good shielding provided by dense copper spiral shielding

• Highly flexible

Applications

• Stage

• Home recording

Connectors

FEATURES XLR FEMALE

• Classic and simple design

• Heavy duty Zinc alloy shell and PA 30% GR bushing
• Special cage type female contact, increases conductivity


  Specifications

  Technical Data
  Jacket Diameter	PVC 6.0 mm
  AWG	24
  Inner Conductors	2 x 0.22 mm²
  Copper Strand/Conductor	28 x 0.10 mm
  Conductor Insulation	PE 1.40 mm
  Shielding	Copper spiral shielding with 80 x 0.10 mm
  Shielding Factor	95%
  Temperature Range	-20 °C to 70 °C
  Packaging	100/300 m roll
  Electrical Data
  Capacitance Cond./Cond.	58 pF/m
  Capacitance Cond./Shield	115 pF/m
  Conductor Resistance	53 Ω/km
  Shield Resistance	25 Ω/km
  Insulation Resistance	> 1 GΩ/km
  Surge Impedance	Approx. 100 Ω
  Connector Data
  Shell (Both Types)	Zinc alloy diecast
  Insert (XLR)	PA66 30% GR
  Contacts (XLR)	Bronze
  Insulation (6.3mm Plug)	PA66 30% GR
  Contacts (6.3mm Plug)	Brass
  Contact Plating	Nickel
  Bushing	PA 30% GR
