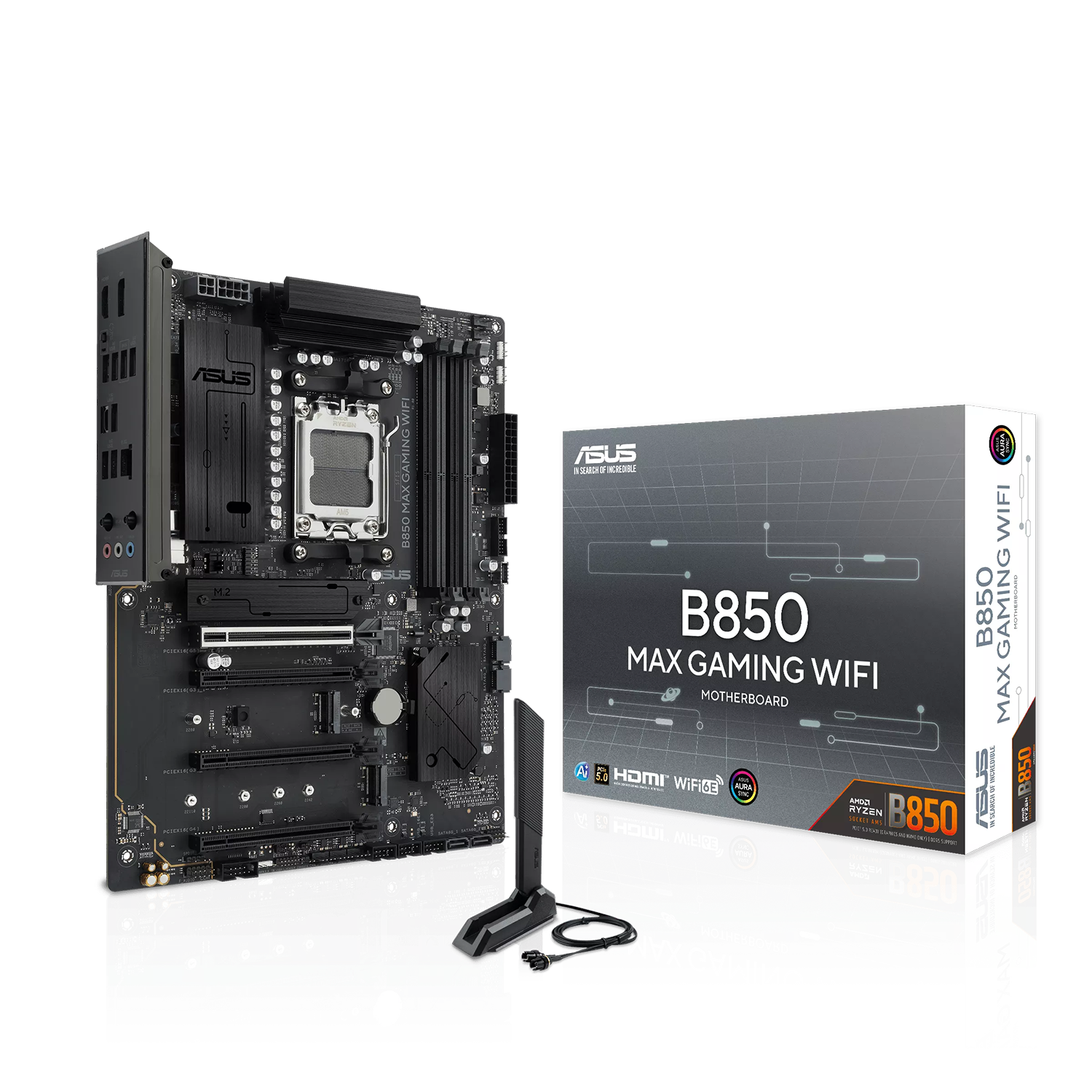

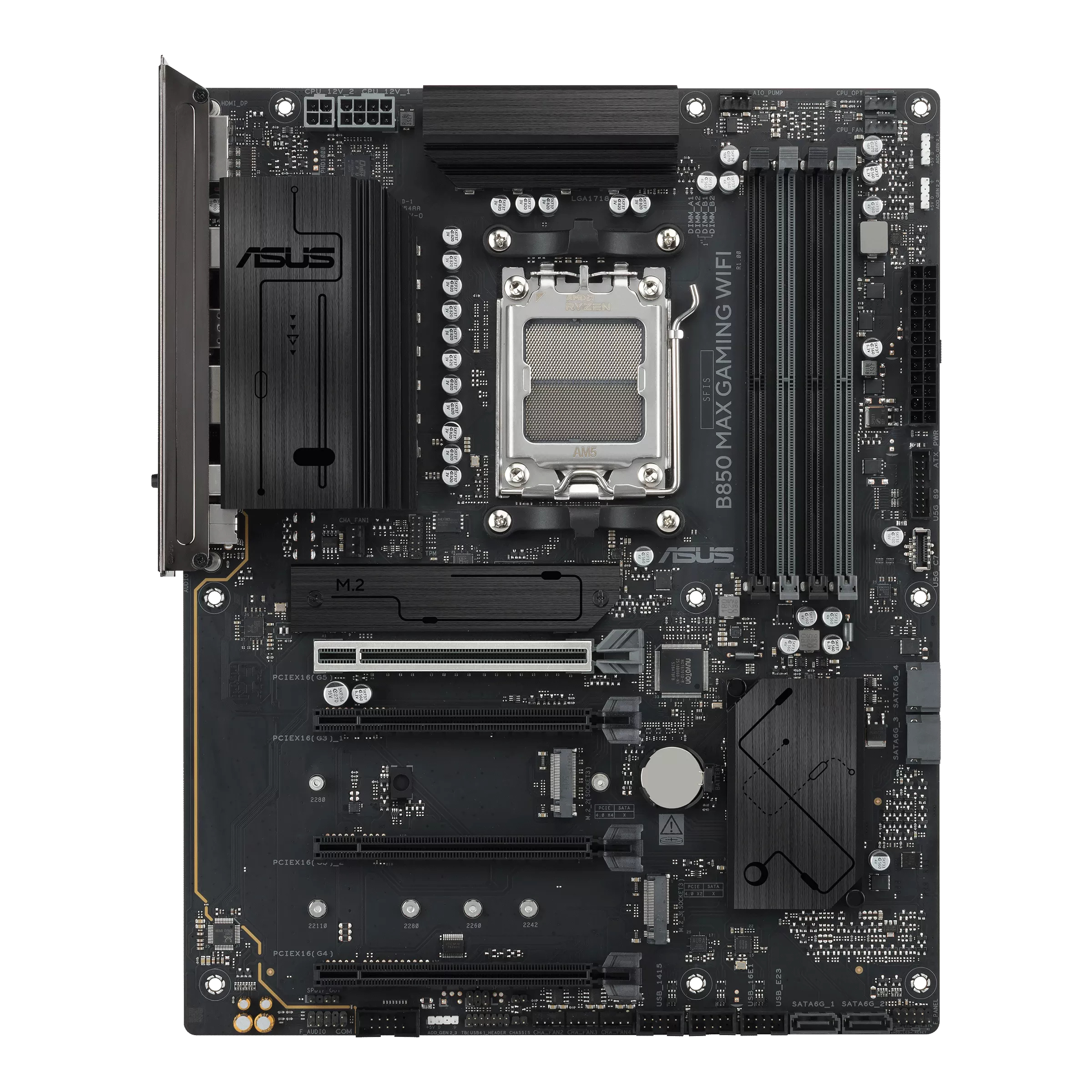

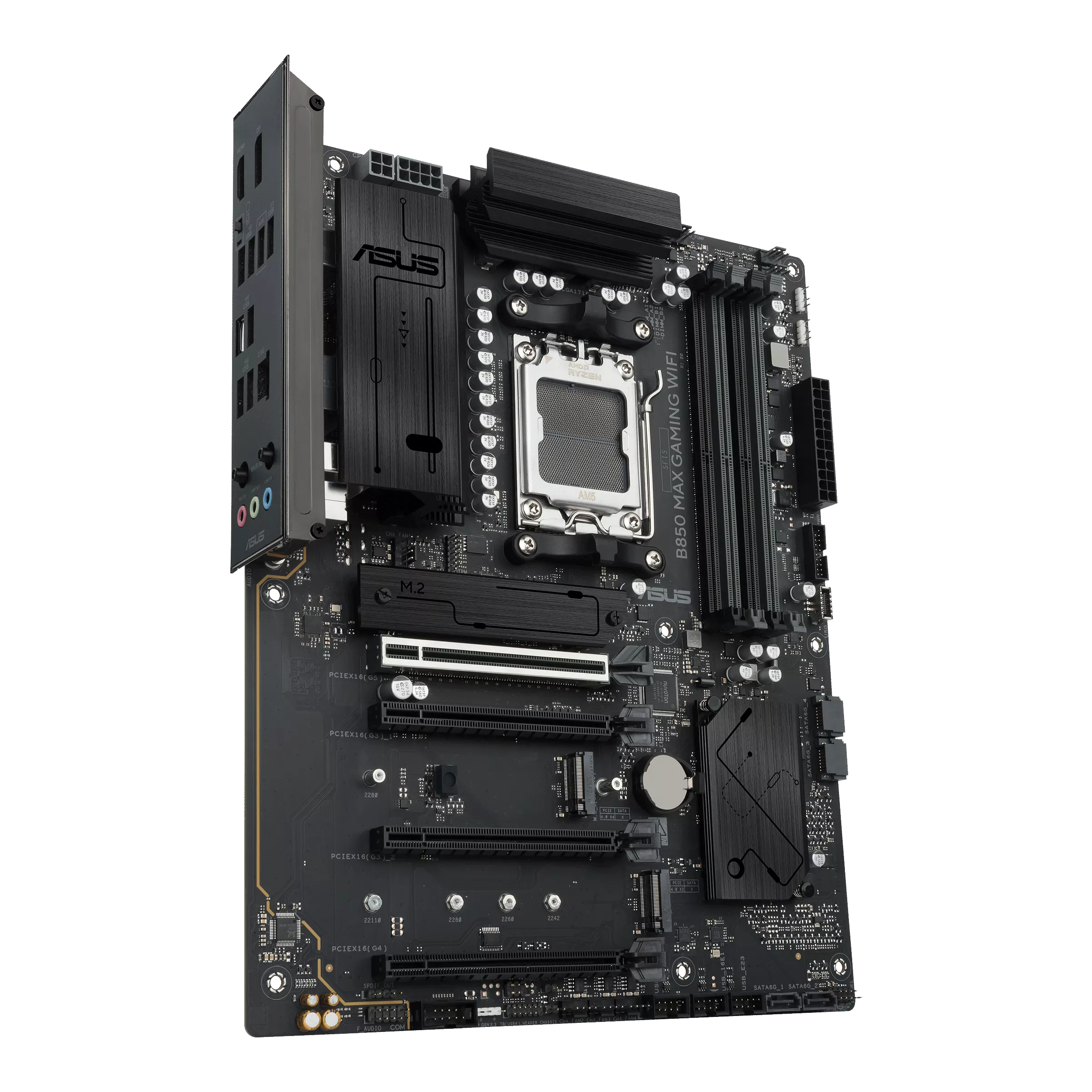

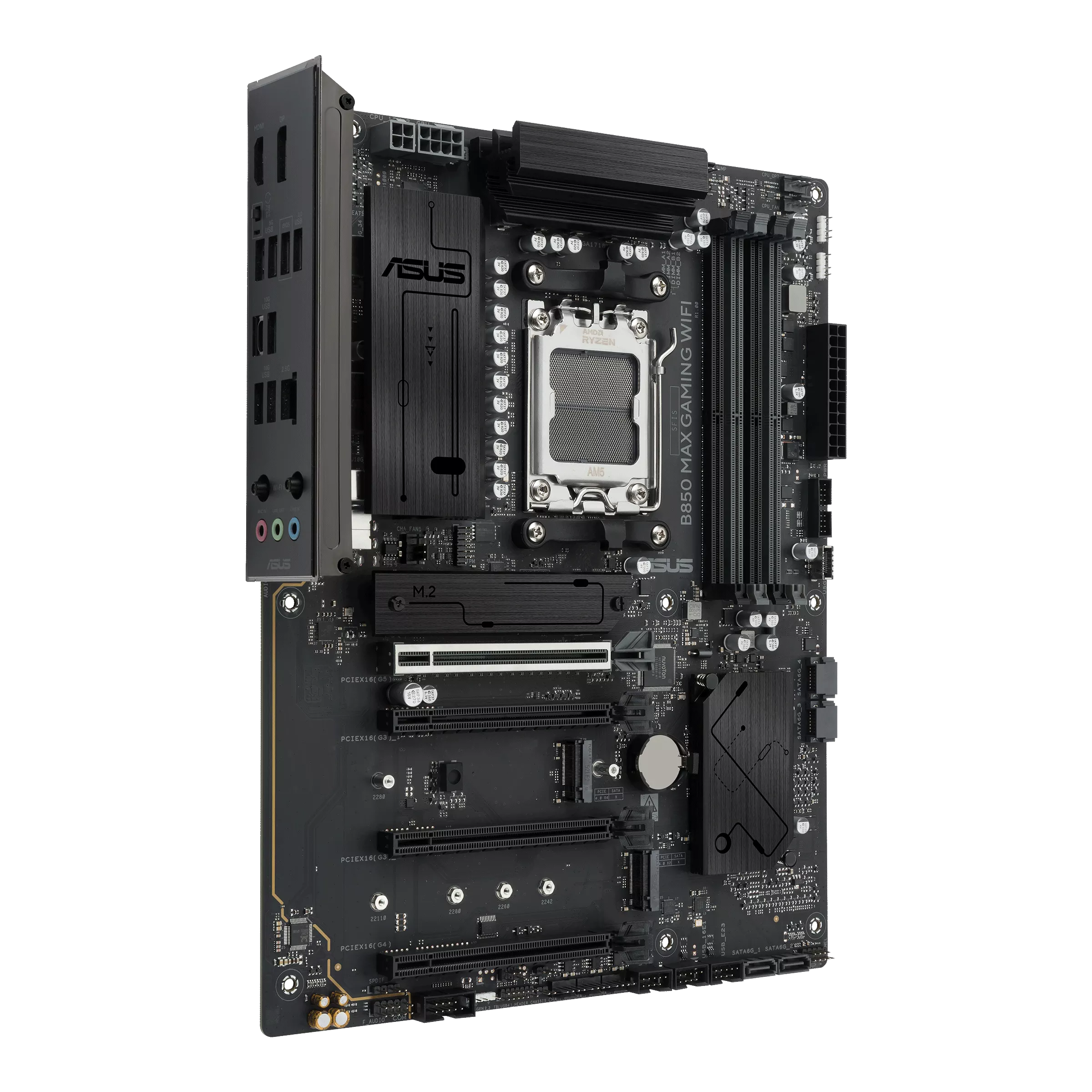

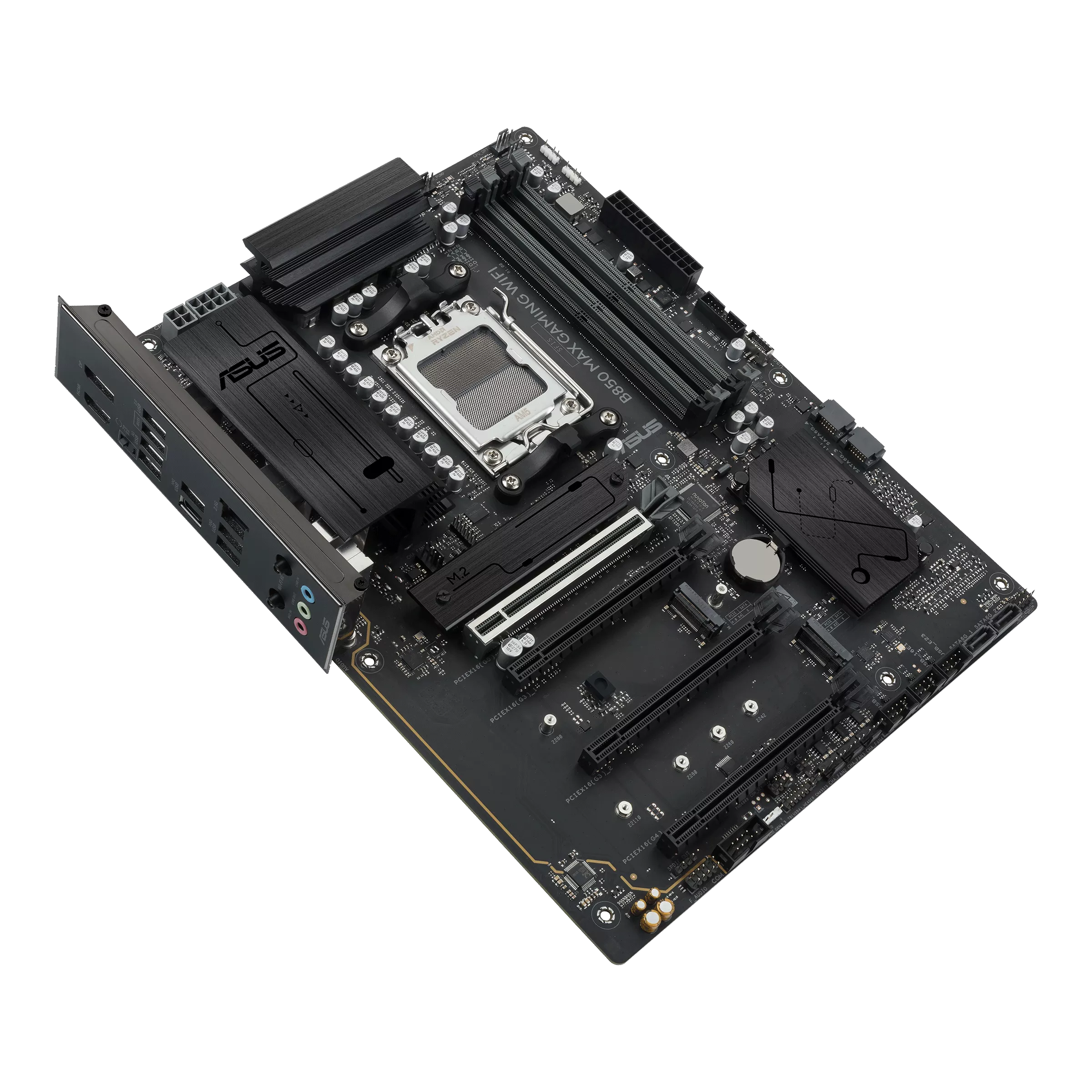

ASUS B850 MAX GAMING WIFI Black AM5 AMD DDR5 GAMING Motherboard - اللوحة الأم

ASUS B850 MAX Gaming WIFI AM5 ATX Motherboard, AMD B850 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 6E & BT 5.3, White | 90MB1M10-M0EAY0

• 8+2+1 phase digital power design
• AEMP for enhanced DDR5 performance
• 2.5Gb Ethernet for faster data transfers

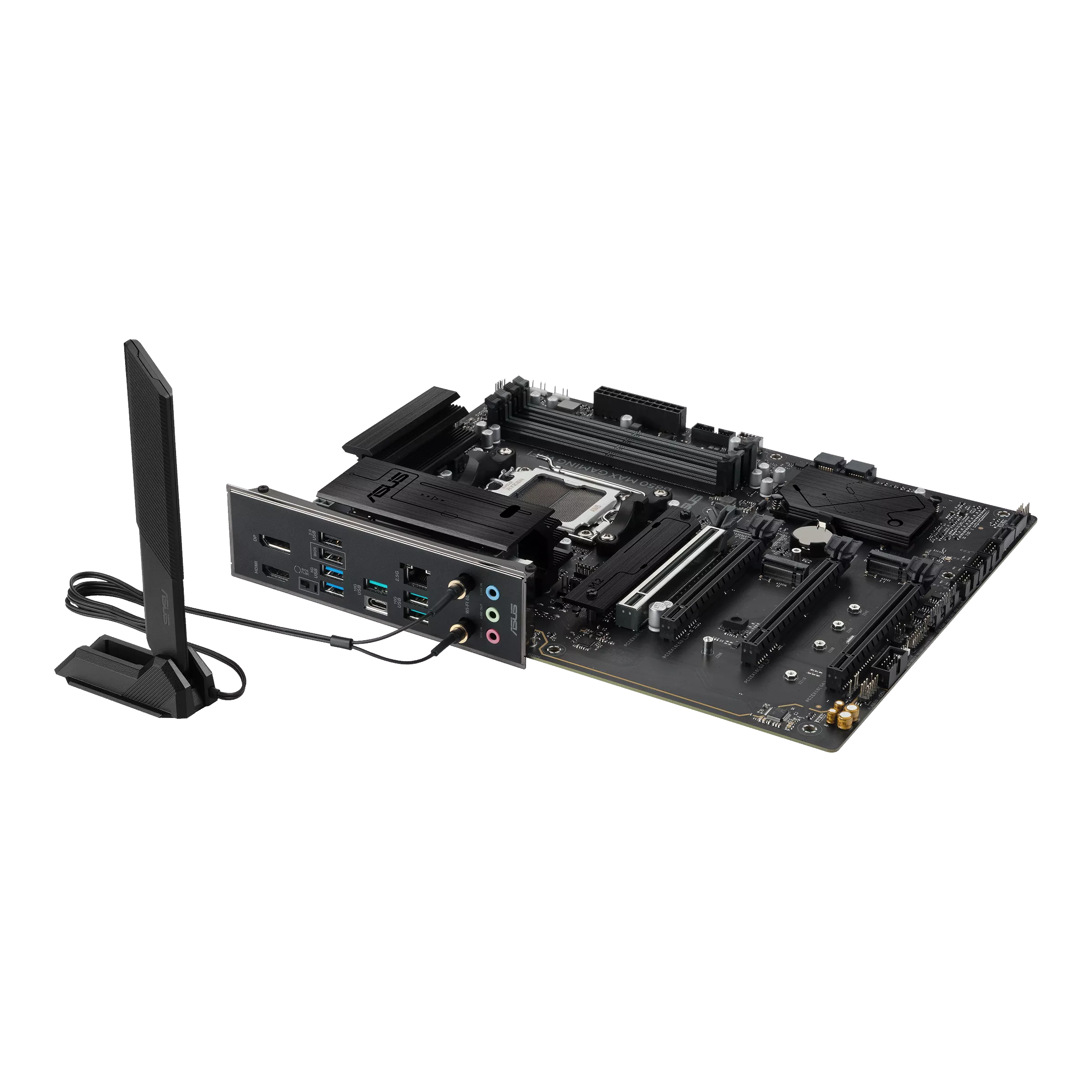

• WiFi 6E for stable WiFi connection and lower latency
• USB 10Gbps Type-C® for rapid data transmission
• PCIe 5.0 slots for graphics card and storage

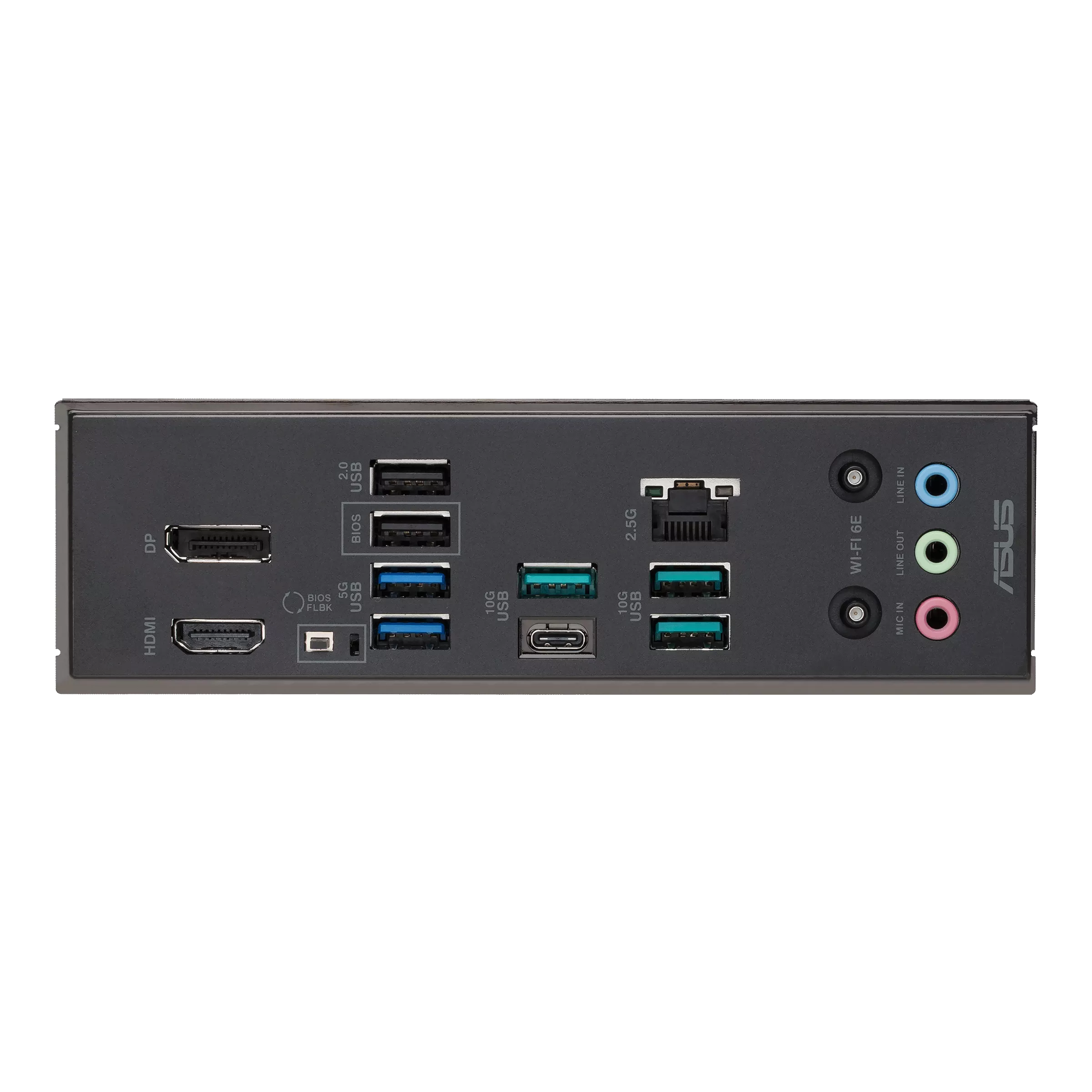

• Pre-mounted I/O shield for safeguarding ports and enhancing aesthetic


  Technical Specifications
  Model	ASUS B850 MAX GAMING WIFI
  Form Factor	ATX (30.5 × 24.4 cm)
  CPU Socket	AMD AM5
  Supported CPUs	AMD Ryzen™ 7000 / 8000 / 9000 Series
  Chipset	AMD B850
  Max CPU Power Support	Up to 170W
  Memory Type	DDR5 (ECC / Non-ECC unbuffered)
  Memory Slots	4 × DIMM
  Max Memory Capacity	256 GB
  Memory Speed (OC)	Up to 9000+ MT/s (CPU dependent)
  Memory Features	EXPO, AEMP, Dual-channel, On-die ECC
  Graphics Outputs	1 × HDMI 2.1, 1 × DisplayPort 1.4
  PCIe Slots	1 × PCIe 5.0 x16 + PCIe 4.0 x16 + 2 × PCIe 3.0 x16 (x1 mode)
  Storage Support	3 × M.2 slots + 4 × SATA 6Gb/s
  M.2 Interface	PCIe Gen5 / Gen4 / Gen4 (chipset dependent)
  RAID Support	RAID 0 / 1 / 5 / 10
  LAN	1 × Realtek 2.5Gb Ethernet
  Wireless	Wi-Fi 6E (2×2, 2.4/5/6 GHz)
  Bluetooth	v5.4 (LE Audio support)
  Rear USB Ports	8 total (USB 10Gbps, 5Gbps, 2.0 mix)
  Front USB Headers	USB-C + USB 5Gbps + USB 2.0 headers
  Audio	Realtek 7.1 HD Audio (24-bit / 192 kHz)
  Audio Features	Audio shielding, premium capacitors, PCB isolation
  Fan Headers	CPU, CPU OPT, AIO Pump, 4 × chassis fans
  RGB Support	Addressable RGB Gen 2, Aura Sync
  BIOS	32MB UEFI AMI BIOS
  Special Features	Q-Design, BIOS FlashBack, SafeSlot, DIGI+ VRM
  Security / Protection	ASUS 5X Protection III
  Manageability	WOL, PXE support
  Operating Systems	Windows 10 64-bit, Windows 11

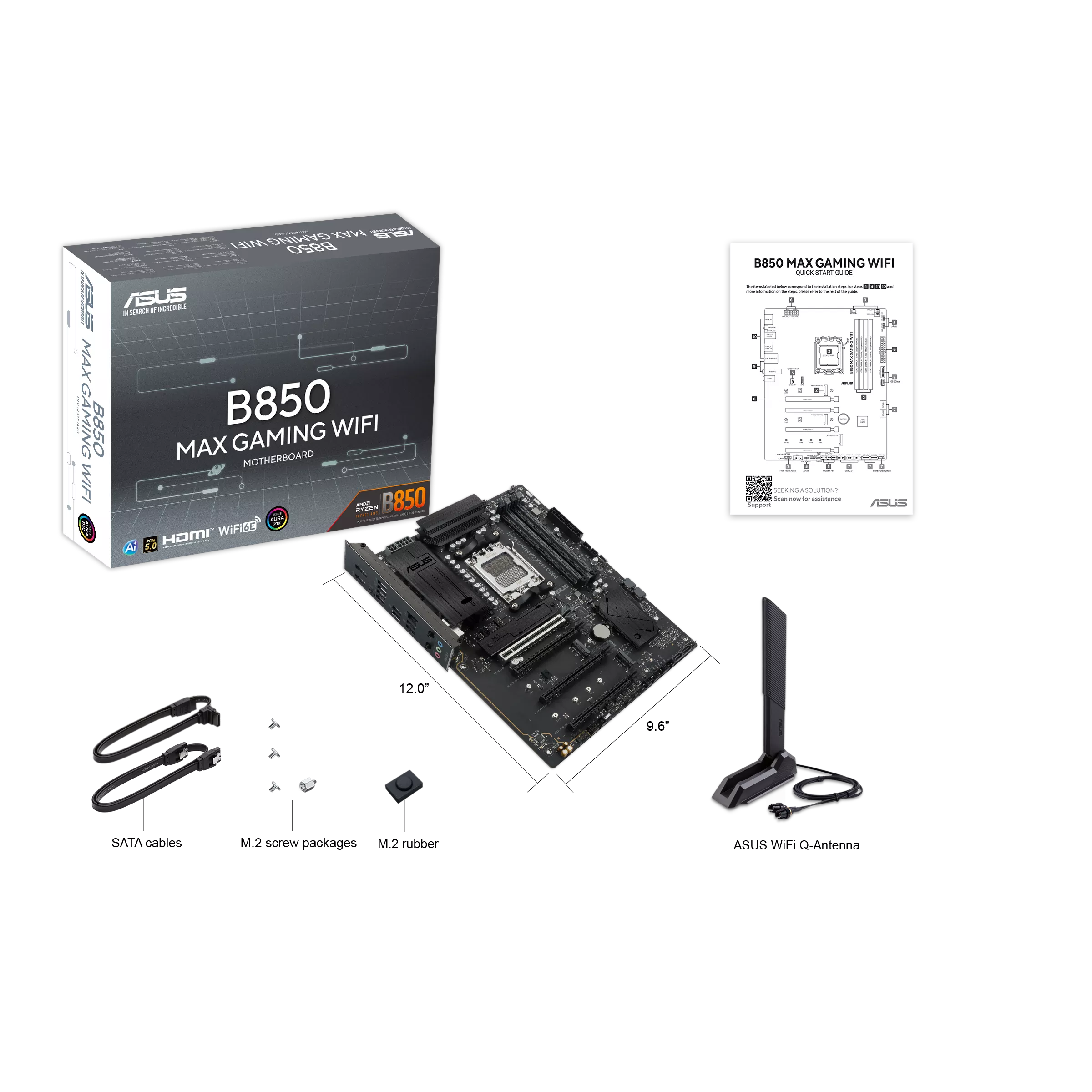

  Accessories Included	WiFi antenna, SATA cables, M.2 screws, quick guide
