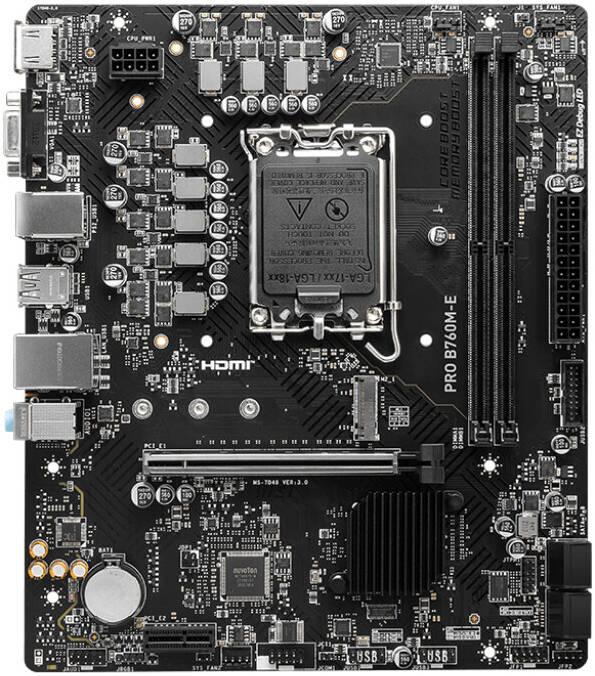

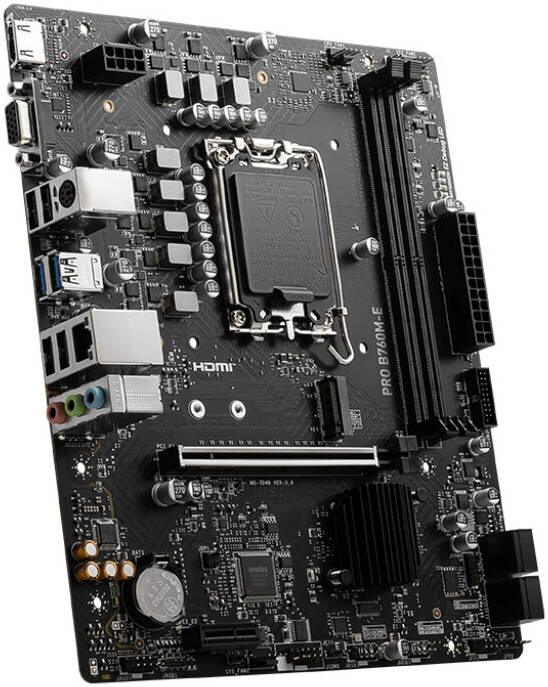

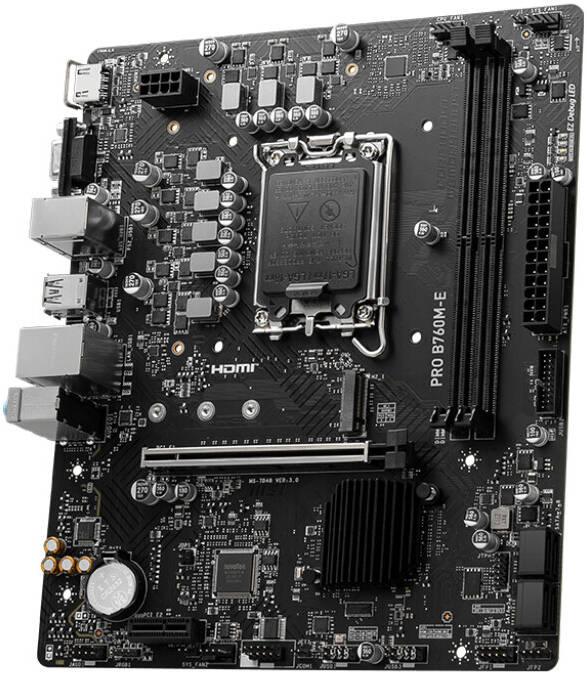

MSI PRO B760M-E LGA 1700 mATX Intel Motherboard, DDR5 - لوحه أم
Product SKU: MSI 911-7D48-065
Available:
Only 0 in stock
0 in stock
In stock
Pre-order
Out of stock
QAR 525.00
Want it delivered by Today? Order before 10:00 PM
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
| Chipset | INTEL B760 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 96GB |
| Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) | |
| Max. overclocking frequency: | |
| - 1DPC 1R Max speed up to 6400+ MHz | |
| - 1DPC 2R Max speed up to 5600+ MHz | |
| Supports Intel® XMP 3.0 OC | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Onboard Graphics | 1x HDMI™ |
| - Supports HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* | |
| 1x VGA | |
| - Supports VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Slot | 1x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| Storage | 1x M.2 |
| - M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4x SATA 6G | |
| * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Audio | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 3.2 Gen1 Type A ports | |
| LED Feature | 4x EZ Debug LED |

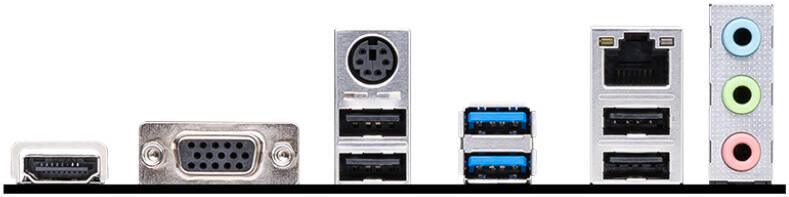

| Back Panel Ports | HDMI™ |
| VGA | |
| Keyboard / Mouse | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| LAN port | |
| Audio Connectors | |
| USB 2.0 | |
| USB 2.0 | |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | mATX |
| 200mmx236.16mm |
