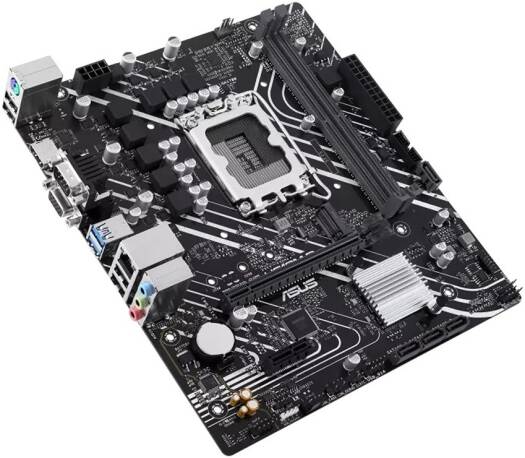

ASUS PRIME H610M-D LGA 1700 M-ATX MOTHERBORARD, DDR5 - اللوحة الأم
كود المنتج:
متوفرة:
فقط 6 عنصر في المخزن
6 عنصر في المخزون
في المخزن
Pre-order
إنتهى من المخزن
QAR 399.00
أريد أن يتم تسليمه بواسطة Today? Order before 10:00 PM
Intel® H610 (LGA 1700) micro-ATX motherboard, DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI™, VGA, USB 3.2 Gen 1, SATA 6 Gbps, COM port, RGB header
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- Comprehensive Cooling: PCH heatsink and Fan Xpert 2+
- 5X Protection III: Multiple hardware safeguards for all-round protectio
-
Description for ASUS Prime H610M-D LGA 1700 m-ATX Motherboard, Intel H610 Chipset, 2x DDR5 DIMM Slots, 96GB Max Memory, 1x M.2 Slot, 1x PCIe 4.0 x16 Slot, Realtek 1Gb Ethernet | 90MB1G80-M0EAY0
Prime H610M-D
Intel® H610 (LGA 1700) micro-ATX motherboard, DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI™, VGA, USB 3.2 Gen 1, SATA 6 Gbps, COM port, RGB header
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
| Model | PRIME H610M-D |
| News & Updates | 2024/08/12: New BIOS with Intel microcode (0x129) available for enhanced stability of Intel Core 13th and 14th Gen processors. |
| CPU |
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen, Intel® Core™ 12th Gen, Pentium® Gold, Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 & 3.0 |
| Chipset | Intel® H610 Chipset |
| Memory |
2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory (Supports Intel® Extreme Memory Profile (XMP)) *Supported memory types and configurations may vary (refer to ASUS support site for details) |
| Graphics |
1 x VGA port 1 x HDMI™ port (supports 4K@60Hz, HDMI 2.1) |
| Expansion Slots |
1 x PCIe 4.0 x16 slot 1 x PCIe 3.0 x1 slot |
| Storage |
1 x M.2 slot and 4 x SATA 6Gb/s ports M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB |
Rear USB: 2 x USB 3.2 Gen 1 (5G) ports (Type-A) + 4 x USB 2.0 ports (Type-A) Front USB: 1 x USB 3.2 Gen 1 header + 1 x USB 2.0 header |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC (supports up to 24-Bit/192 kHz playback) *Requires chassis with HD audio module for 7.1 output |
| Back Panel I/O Ports |
2 x USB 3.2 Gen 1 (5G) ports (Type-A) 4 x USB 2.0 ports (Type-A) 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors |
Fan/Cooling: 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers Power: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector Storage: 1 x M.2 slot, 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 header, 1 x USB 2.0 header |
| Miscellaneous | 1 x RGB header, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header, 1 x 10-1 pin System Panel header |
| Special Features |
ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O) ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot) ASUS Thermal Solution (Aluminum heatsink design) ASUS Lighting Control (RGB header) |
| Software Features |
ASUS Exclusive Software (Armoury Crate, AI Suite 3, ASUS CPU-Z, Norton 360 Deluxe, WinRAR) UEFI BIOS (ASUS EZ DIY) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |
Cables: 2 x SATA 6Gb/s cables Miscellaneous: 1 x I/O Shield, 1 x M.2 Anchor, 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX Form Factor (9.2 inch x 8.0 inch / 23.4 cm x 20.3 cm) |
