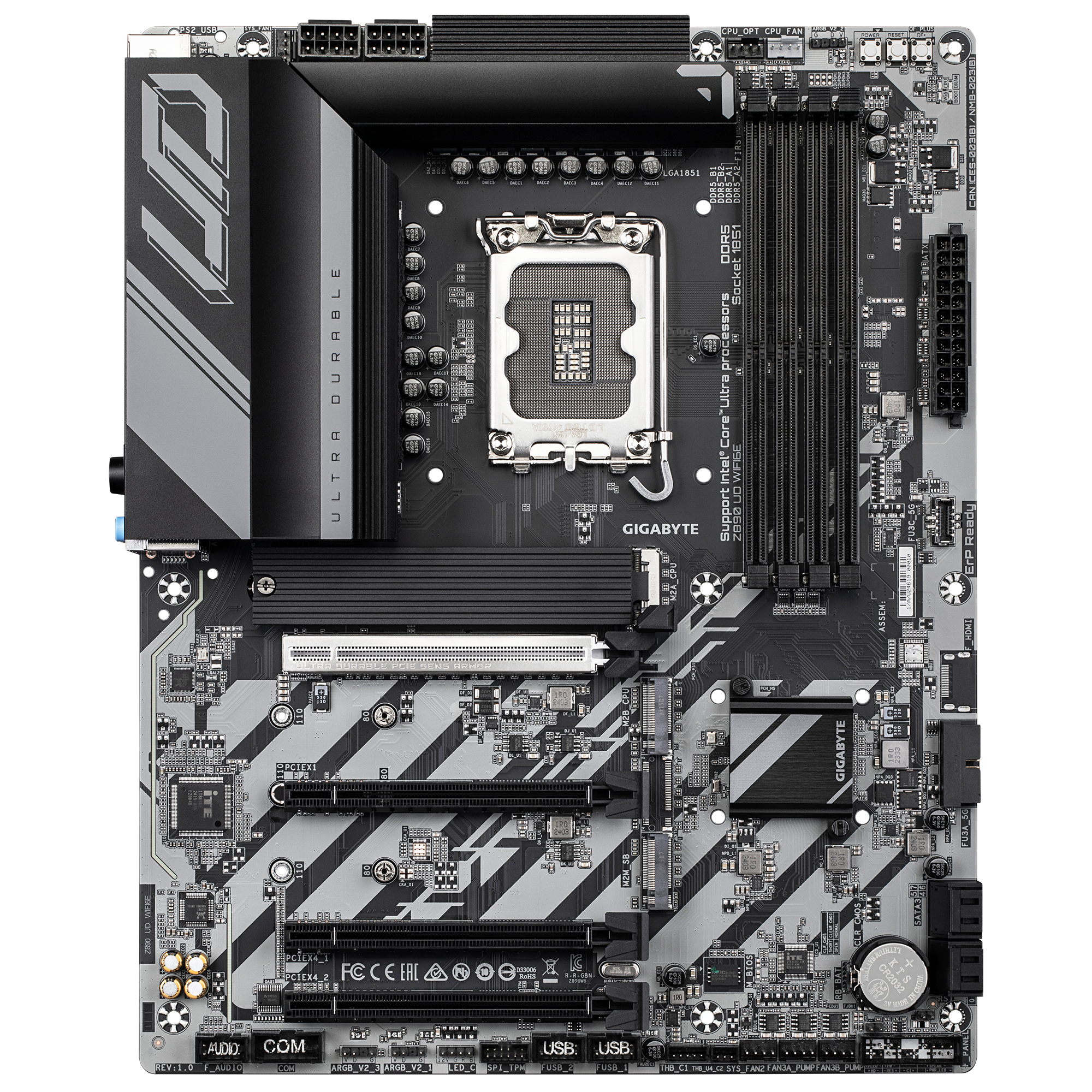

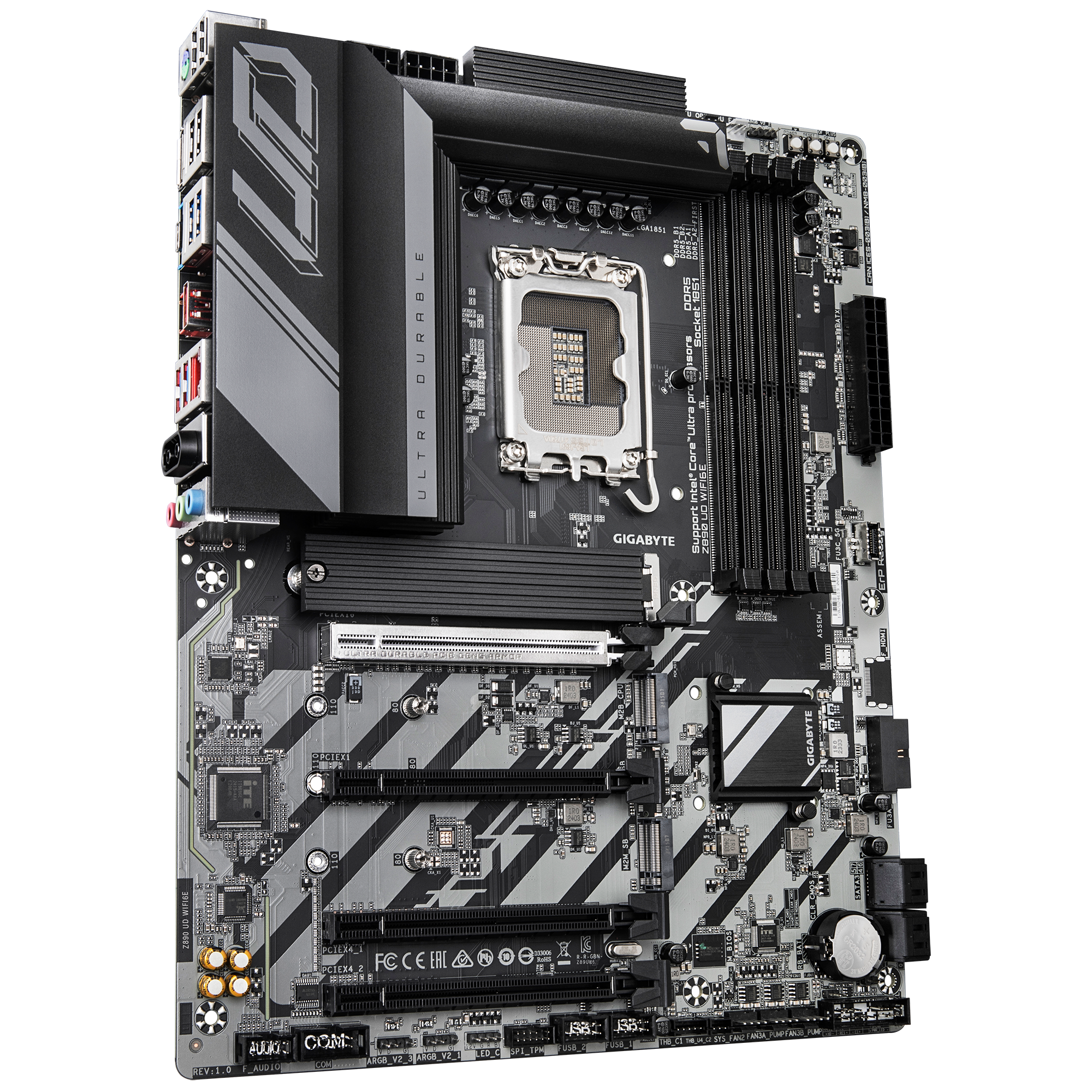

GIGABYTE Z890 UD WIFI 6E LGA 1851, DDR5, ATX Motherboard - اللوحة الام

Name: GIGABYTE Z890 UD WIFI 6E LGA 1851, DDR5, ATX Motherboard - اللوحة الام
Brand: Gigabyte
SKU: Z890-UD-WIFI6E
Price: 965.0 QAR
Availability: OutOfStock
Rating: 5.0 (10 reviews)

كود المنتج: Z890-UD-WIFI6E

متوفرة:

فقط 0 عنصر في المخزن

0 عنصر في المخزون

في المخزن

Pre-order

إنتهى من المخزن

QAR 965.00

~~QAR 999.00~~

GIGABYTE Z890 UD WIFI6E Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 12+1+2 Phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 6E, 2.5GbE LAN, Thunderbolt 4

Key Features:

Supports Intel® Core™ Ultra processors (Series 2)
Digital twin 12+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
Premium Compatibility : 4*DDR5 with XMP Memory Module Support
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch : PCIe x16 Slot with Quick Release Design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort

Product information
CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU * Please refer to "CPU Support List" for more information.
Chipset	Intel® Z890 Express Chipset
Memory	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version (Graphics specifications may vary depending on CPU support.)
Wireless Communication module	Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
Storage Interface	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

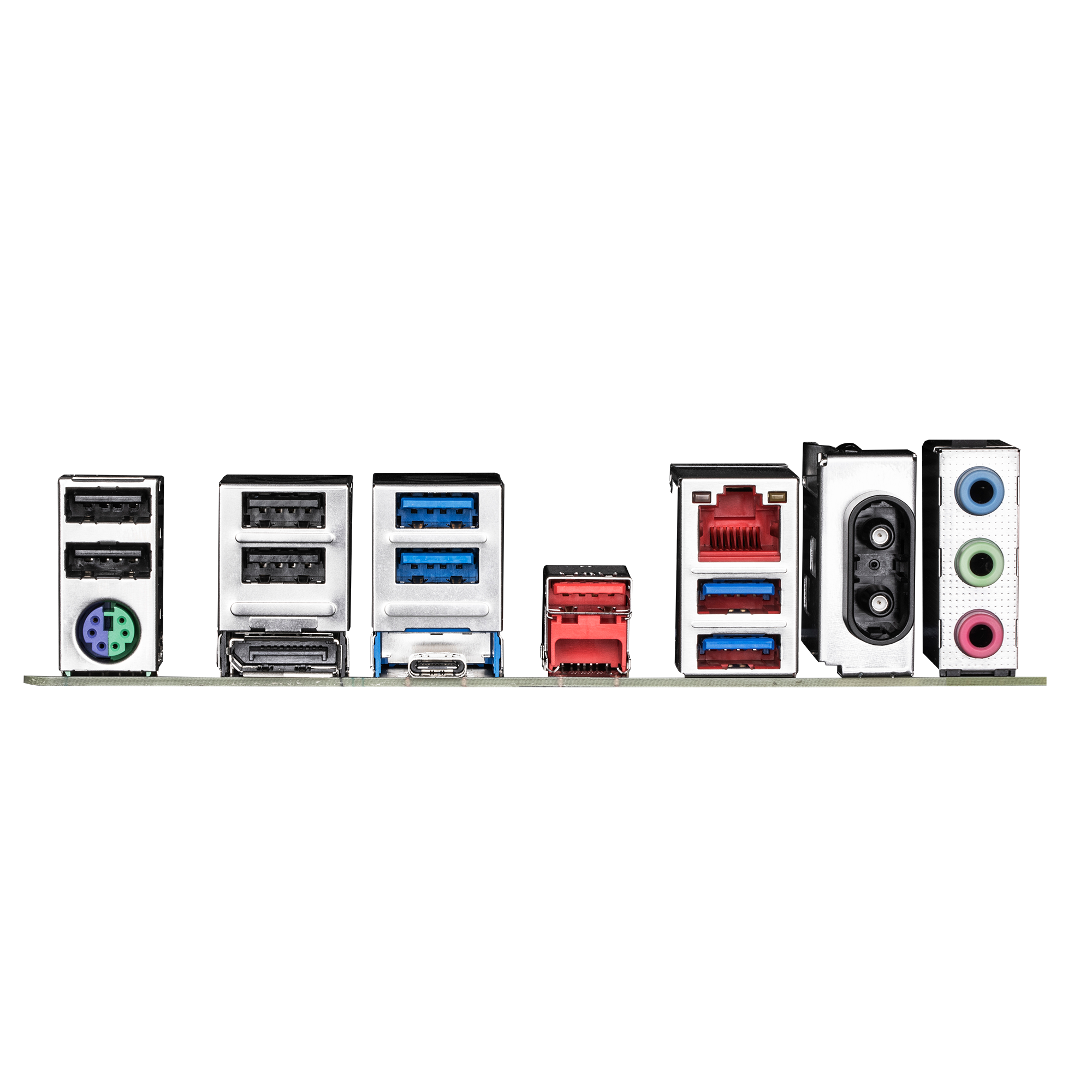

Back Panel Connectors	4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x USB4® USB Type-C® port (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks (Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
